ET-PLUS™ (TL-2)
25' (7.62 m) SYSTEM
For specific installation, maintenance, or repair details,
refer to the state/specifying agency’s standard drawing(s).

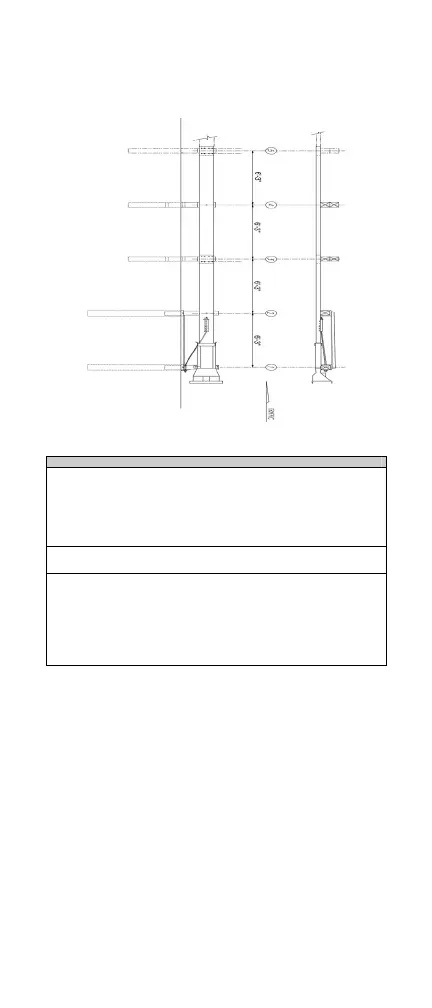

(This drawing represents one (1) version of the 25' (7.62 m) systems)
Alternates for Foundation Tubes, Rail Panels, and Posts
At post locations 1 and 2, the alternates to long foundation tube
without soil plate are:
• HBA™ post
• HBA™ post at location 1 and SYTP™ at location 2
• Long foundation tube or short tube with soil plate at
location 1 and SYTP™ at location 2
The alternate to two (2) 12' 6" (3.81 m) long rail elements is one (1)
25’ 0” (7.62 m) long rail element.
For post locations 3 through 4 (25’ (7.62 m) system), alternates
are:
• Short steel foundation tubes without soil plates and
breakaway wood posts or SYTP™ in tubes
• All HBA™ posts
• All CRT posts
• All SYTP™
