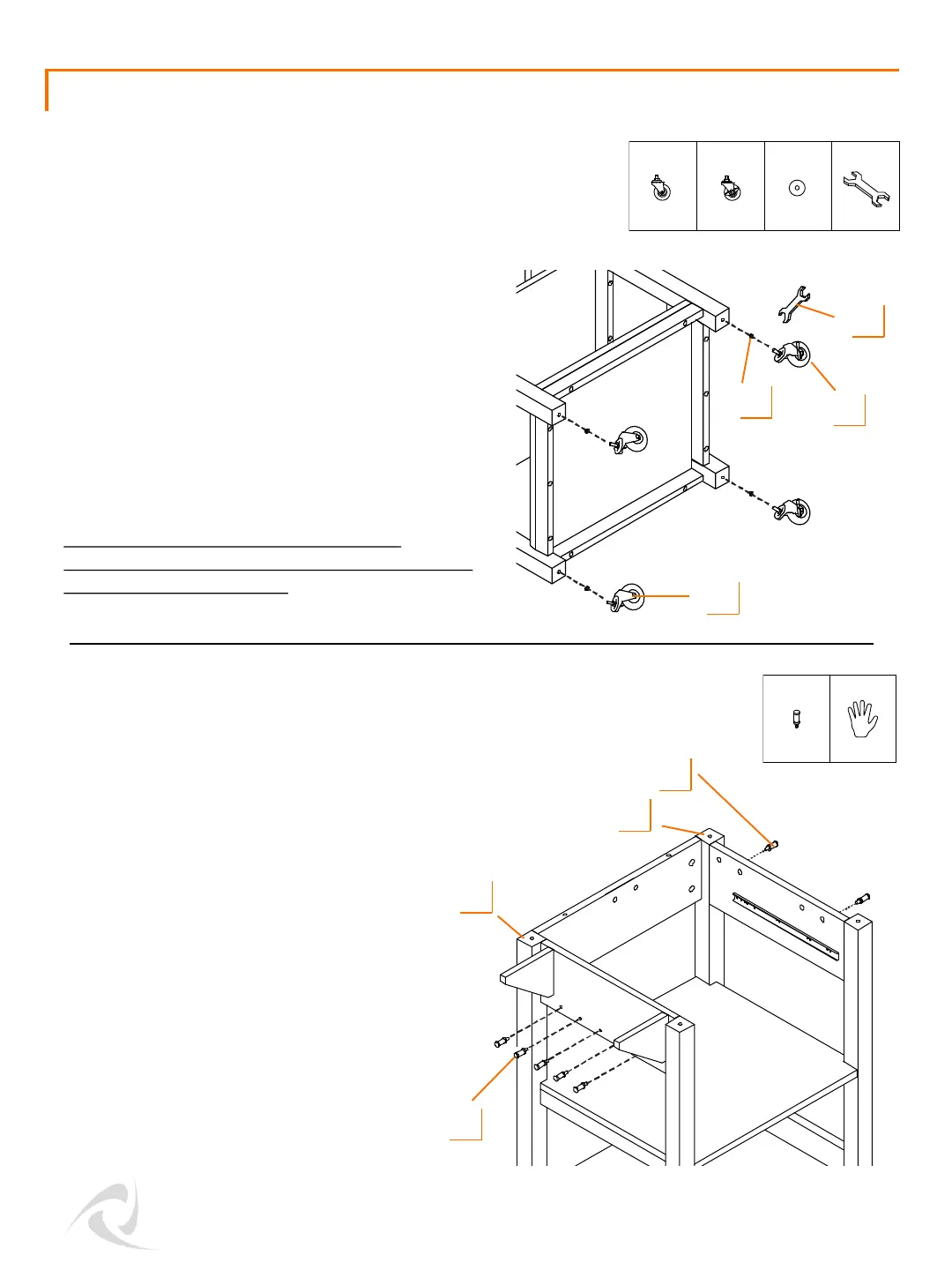

ASSEMBLY INSTRUCTIONS
With two people, carefully stand partially
assembled Kitchen Cart upright.
By hand, screw (2) HANGER STUDS (DD)
into the insert nuts on RIGHT SIDE FRAME
(C).
By hand, screw (5) HANGER STUDS (DD)
into the insert nuts on LEFT SIDE FRAME
(B).
To prepare for the next step, extend the
triangular support by pulling it away from
the SIDE FRAMES (B, C) and point it
outward. Do this to all (4) triangular
supports on both sides.
Take a NON-LOCKING CASTER (EE) and insert
threaded stem through WASHER (GG) and screw
into one of the rear legs. Fully tighten with WRENCH
(HH). Repeat with the other NON-LOCKING CASTER
(EE).
Take a LOCKING CASTER (FF) and insert threaded
stem through WASHER (GG) and screw into one of
the front legs. Tighten with WRENCH (HH). Repeat
with the other LOCKING CASTER (FF).
Note: Make sure LOCKING CASTERS (FF) are on the
same side.
Use the provided caster wrench to tighten
completely. Failure to do as instructed could result
in the caster stem breaking.
STEP 5
STEP 6
GG (4) HH (1)
FF (2)
EE (2)
DD (7)
EE
FF
HH
GG
DD
B
C
DD
Hand
