ASSEMBLY INSTRUCTIONS

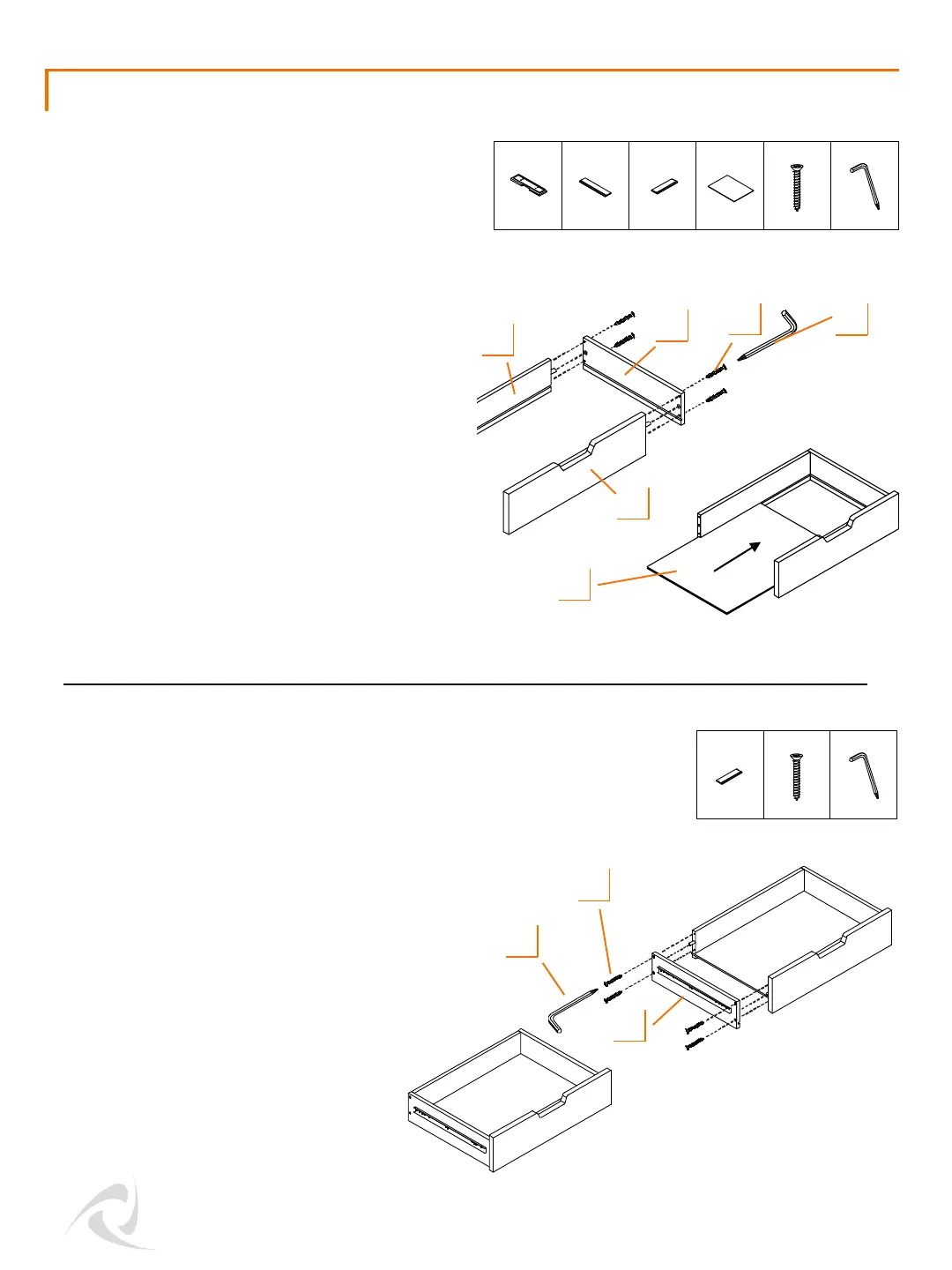

Align and press dowels on DRAWER FRONT PANEL

(H) and DRAWER BACK PANEL (I) into blind holes

on DRAWER RIGHT PANEL (K).

Insert (4) DRAWER SCREWS (BB) through the

DRAWER RIGHT PANEL (K) and fasten them tightly

to DRAWER FRONT PANEL (H) and DRAWER BACK

PANEL (I) with SCREWDRIVER (II).

Slide DRAWER BOTTOM PANEL (L) into the

grooves as shown.

STEP 9

Align and press dowels on DRAWER FRONT

PANEL (H) and DRAWER BACK PANEL (I) into

blind holes on DRAWER LEFT PANEL (J).

Insert (4) DRAWER SCREWS (BB) through

the DRAWER LEFT PANEL (J) and tightly

fasten them with the SCREWDRIVER (II).

STEP 10

L (1) BB (4)

K (1)

II (1)

I (1)

H (1)

IIBB

II (1)BB (4)J (1)
