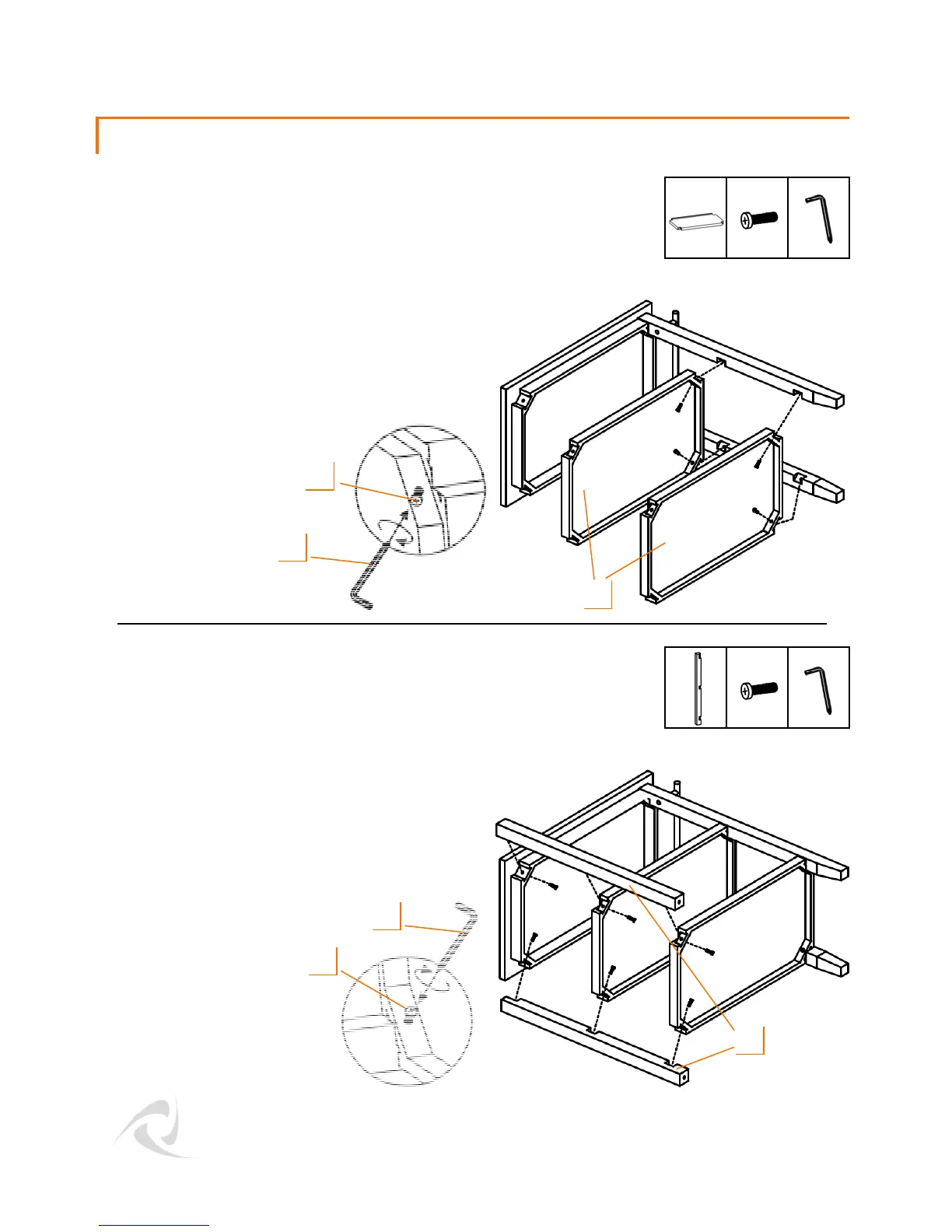

ASSEMBLY INSTRUCTIONS
Place LEG SCREW (G) through hole in
the WOOD TOP (A) or HANDLE LEG (D)
and tighten it with SCREWDRIVER (I) to
nut in CASTER LEG (C).
Repeat until all 6 LEG SCREWS (G) have
been installed.
STEP 3
STEP 4
G (4) I (1)
B(2)
G (6) I (1)
C(2)
© 2016 TRINITY - 800.985.5506
3
Lay kitchen cart on its side so it is leaning
on the side of WOOD TOP FRAME (A)
and (1) HANDLE LEG (D). Orient SHELF
(B) so the flat surface faces WOOD TOP
FRAME (A) and the raised edge of the 2
shelves are on the same side. Place LEG
SCREW (G) though the hole in the
SHELF (B) and tighten it with
SCREWDRIVER (I) to the nut in the
HANDLE LEG (D).
Repeat for the other side and for
2
nd
shelf.
C
G
I
B
G
I
To Next Page
