ASSEMBLY INSTRUCTIONS
© 2016 TRINITY - 800.985.5506
5

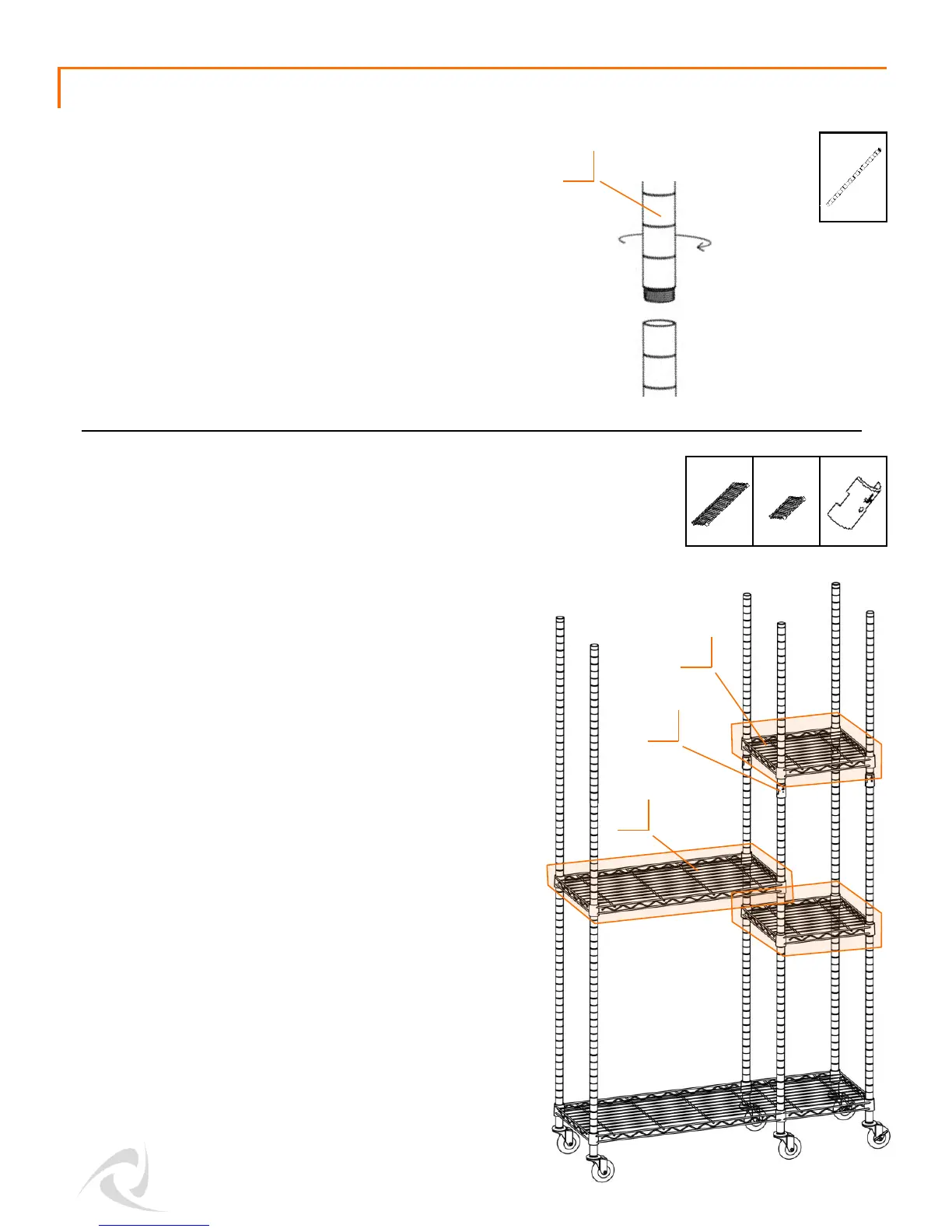

Screw the TOP POLES (D) into the MIDDLE
POLES (E).
STEP 5
D (6)
D
Decide the position of MEDIUM SHELF (B) and
SMALL SHELVES (C) that will best fit your needs.
Starting with the lowest desired SHELF position,
Place 1 pair of SLIP SLEEVES (J) on each of the (4)
POLES for that SHELF. Please make sure the
arrow faces up and that the word “TOP” is right side
up. Make sure that the heights are identical for each
POLE.
Repeat Step 6 to install the next lowest SHELF as
desired.
If you are installing the MEDIUM SHELF (B) above
the SMALL SHELF (C), please make sure that you
place the SLIP SLEEVES (J) at least 4 indentations
above the SMALL SHELF (C) so that the HANGING
BAR (G+H) can fit properly.
*Use a rubber mallet, if needed, to secure the
SHELVES (A+B+C).
STEP 6
J (24)B (1) C (2)
To Next Page
