ASSEMBLY INSTRUCTIONS
© 2016 TRINITY - 800.985.5506
6

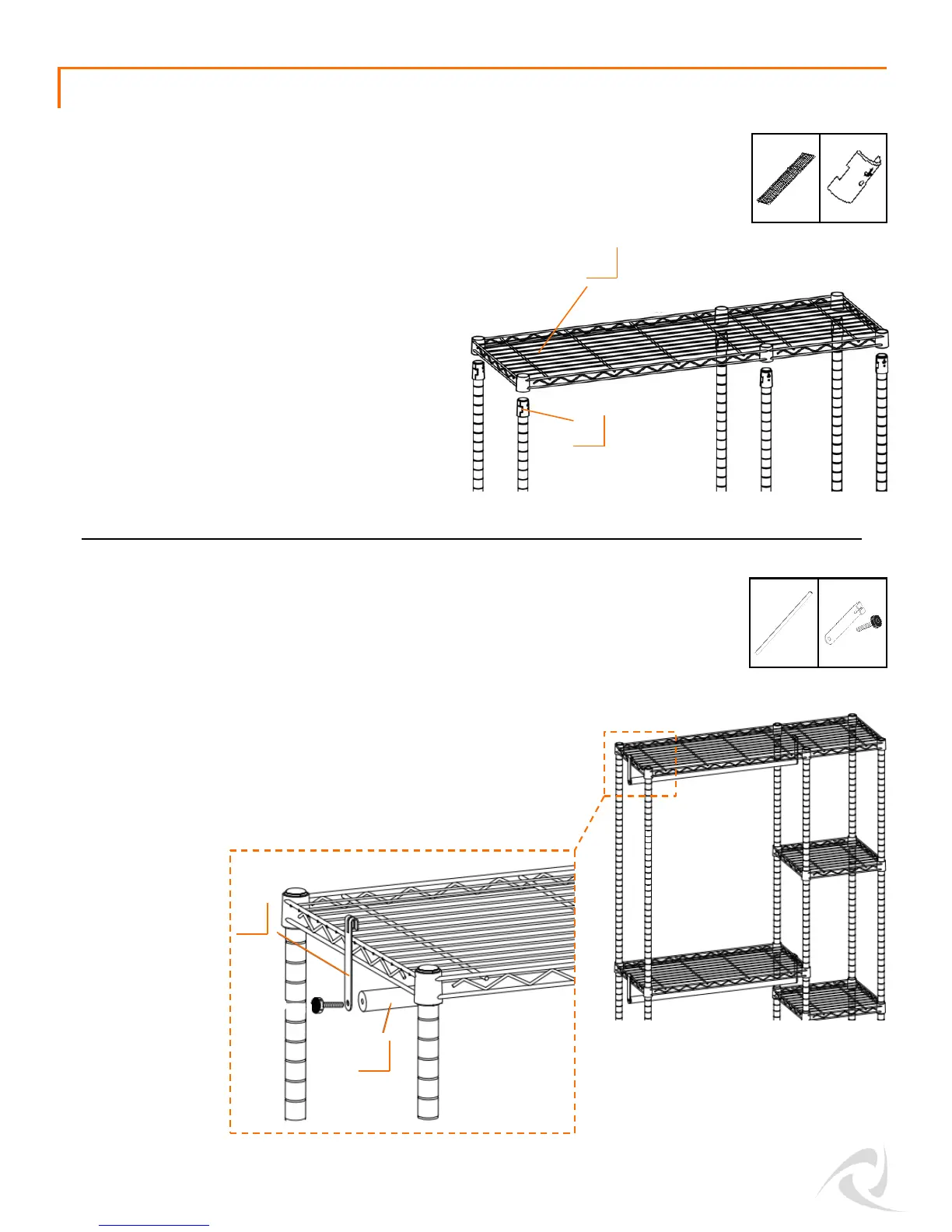

Place 1 pair of SLIP SLEEVES (J) at the top
of each POLE. Please make sure the arrow
faces up and that the word “TOP” is right
side up.
Lower LARGE SHELF (A) over the POLES
so that the corner cylinders of the LARGE
SHELF (A) are positioned over the SLIP
SLEEVES (J).
*Use a rubber mallet, if needed, to secure
the SHELVES (A+B+C).
STEP 7
A (1) J (12)
J
A
Hang the HANGING BRACKET (H) on both ends of the
MEDIUM SHELF (B) and the LARGE SHELF (A) as shown.
Fasten HANGING SCREW (H) through HANGING
BRACKET (H) to HANGING ROD (G). Do this for both
HANGING RODS (G).
STEP 8
H (4)
G (2)
G
H
To Next Page
