Triplett Fox Jr. User Manual

18
crosstalk of any signal on the wires into adja-
cent wire pairs. Telephone cables are con-
structed in this manner, so a LINE/LINE con-
nection is often used to trace telephone cables.
The FOX Jr’s modular plug applies a LINE/LINE
connection when plugged into its mating modu-
lar jack (connected to a telephone line).
(See Figure 2)
MULTI-WIRE CABLE
TERMINALS
TARGET
WIRE

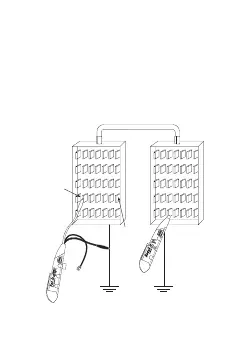

Figure 1 Line/Ground Connection
