Triplett Fox Jr. User Manual

19

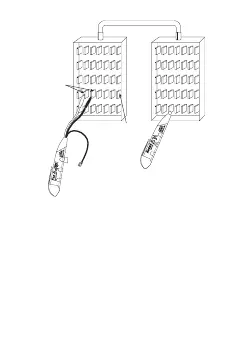

MULTI-WIRE CABLE
TERMINALS
TARGET
WIRES
Figure 2 Line/Line Connection
9.1.3 Testing
Whether the LINE/GROUND or LINE/LINE con-
nection is used at the FOX Jr, the use of the
HOUND Jr for tracing the signal is the same. In
general, the HOUND Jr is used by bringing it
into proximity with the wire/cable that is being
traced, listening for the TONE signal from the
