Installation and Operation
Refer to the following steps and diagram to set up your KVM switch
installation.
Note: Before making any connections, make sure power to all devices connected
to the KVM switch is turned off. Unplug the power cords of any computers that have
the Keyboard Power On function.
1. Connect computers to the USB-B input ports using USB cables. Connect
the computers’ microphone and stereo audio ports using 3.5 mm
audio cables. Connect computers to the “DisplayPort In” ports using
DisplayPort cables.
2. Connect a keyboard and mouse to the USB-A ports on the rear panel.
Connect a microphone and amplifier to the microphone and stereo audio
ports using 3.5 mm audio cables. Connect a monitor to “DisplayPort
Out” using a DisplayPort cable (maximum: 2 m) or to “HDMI Out” using
an HDMI cable.
Note: When either “DisplayPort Out” or “HDMI Out” is connected, video
is transmitted by the connected port automatically. When both ports are
connected, the DisplayPort takes precedence.

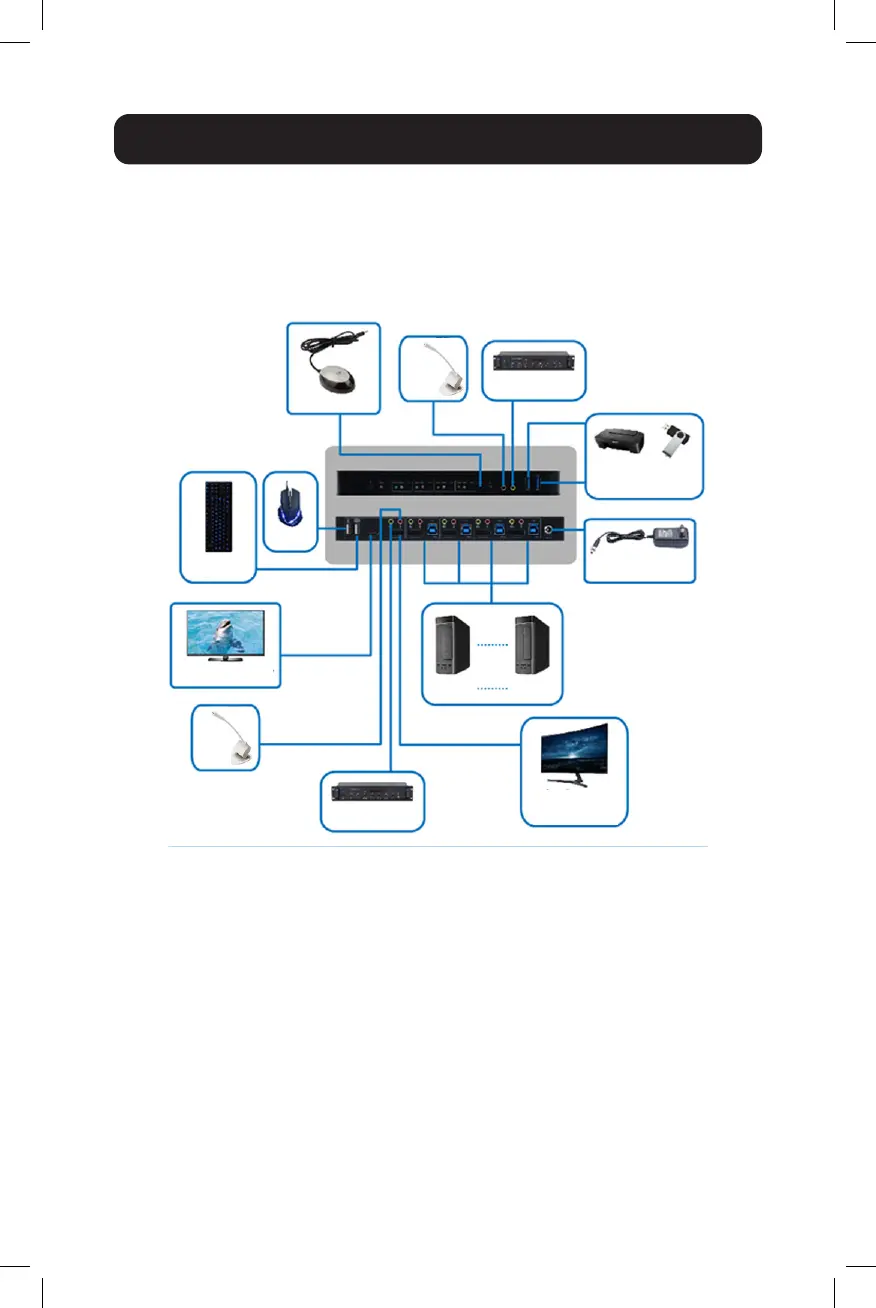

IR Extender
Mic
Amplifier
Keyboard
Mouse
HDMI Display
Mic
Amplifier
DisplayPort
Display
PC1 PC4
Power Supply
USB Devices
(Printer, Scanner, U-disk, etc)
To Next Page
