3

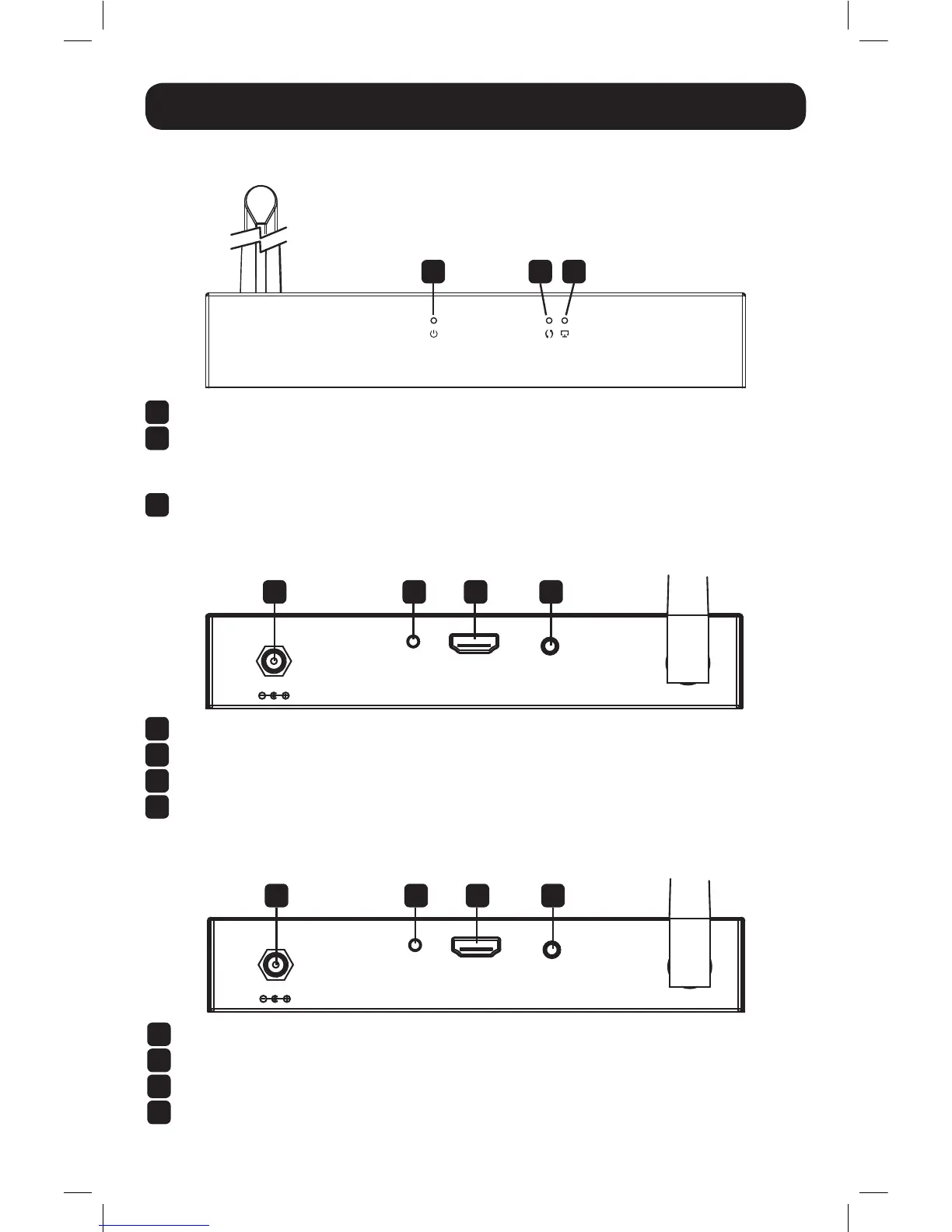

Indicators and Connections
HDMI Receiver (Rx) and Transmitter (Tx) Front Panel
HDMI Tx Back Panel
1
Power LED: This LED illuminates solid blue when the unit is receiving power.
2
Data Transmission LED: This LED illuminates orange and blinks slowly while a
connection is being established. It blinks quickly when the unit is successfully
connected and transmitting data.
3
Connection LED: This LED illuminates solid green when a wireless signal is
connected.
1
Power Input: Connect included external power supply.
2
Reset Button: Press this button to restart the device.
3
HDMI Input: Connect to HDMI source with an HDMI cable.
4
IR-OUT (Tx) Port: Connect included IR-OUT (Tx) cable.
Note: Ensure the source device has a clear line of sight to the IR transmitter.
1 2 3
IR OUT
Tx
HDMI INPUTRESET
DC 5V, 3A
1 2 3 4
HDMI Rx Back Panel
1
Power Input: Connect included external power supply.
2
Reset Button: Press this button to restart the device.
3
HDMI Output: Connect to HDMI display with an HDMI cable.
4
IR-IN (Rx) Port: Connect included IR-IN (Rx) cable.
Note: Ensure the source remote control has a clear line of sight to the IR receiver.
Rx
IR INHDMI OUTPUTRESET
DC 5V, 3A
1 2 3 4
16-12-095-933699.indb 3 2/16/2017 3:27:27 PM
