Assembly
9
Install the DVD Shelf
O
P-G
D
P-A
P-H
P-F
P-A

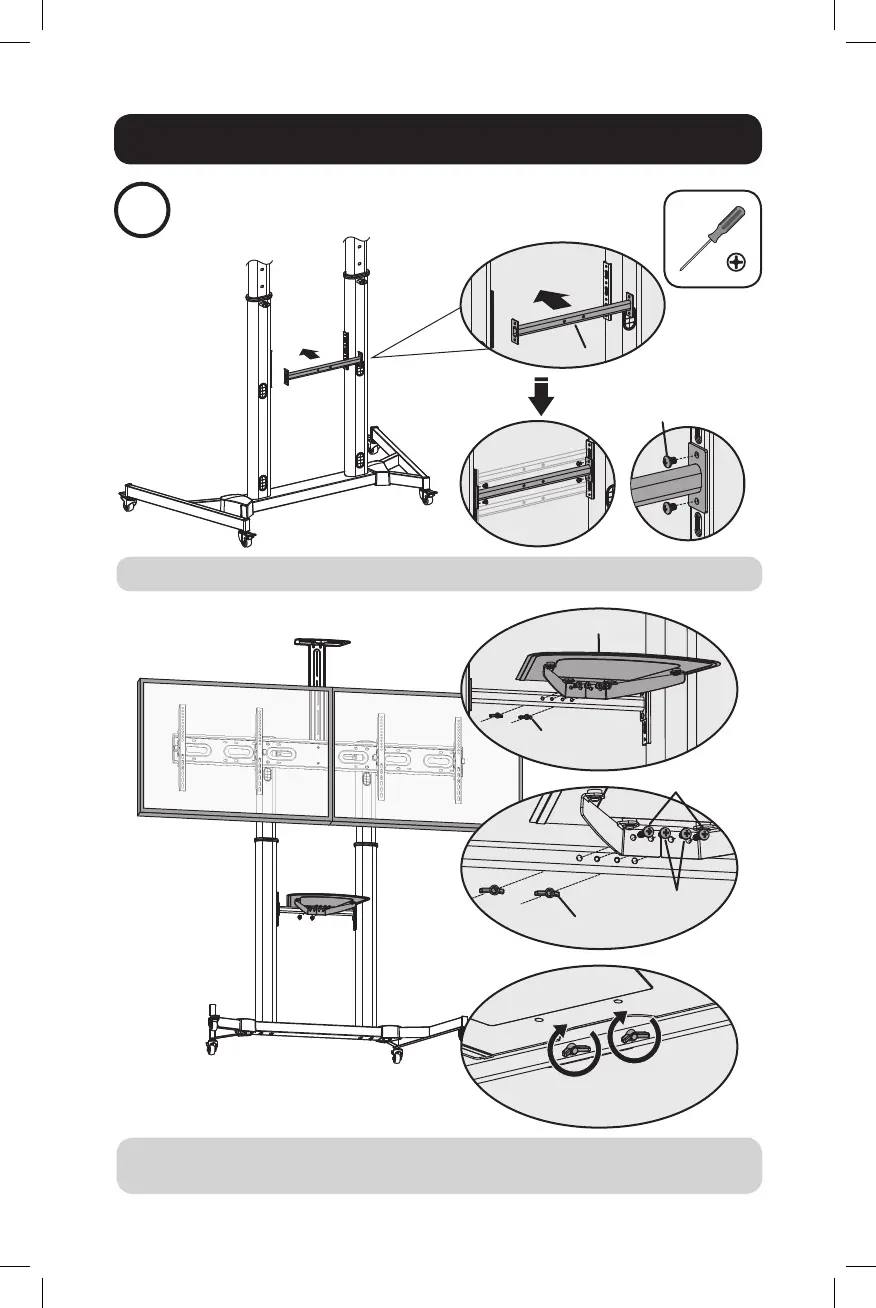

Using M6x8 screws (P-G), attach the support bar to the columns at the desired position.
Using M6x25 screws (P-F), M6x8 screws (P-H) and butterfly nuts (P-A), attach the DVD
shelf to the support bar.
