Assembly
8

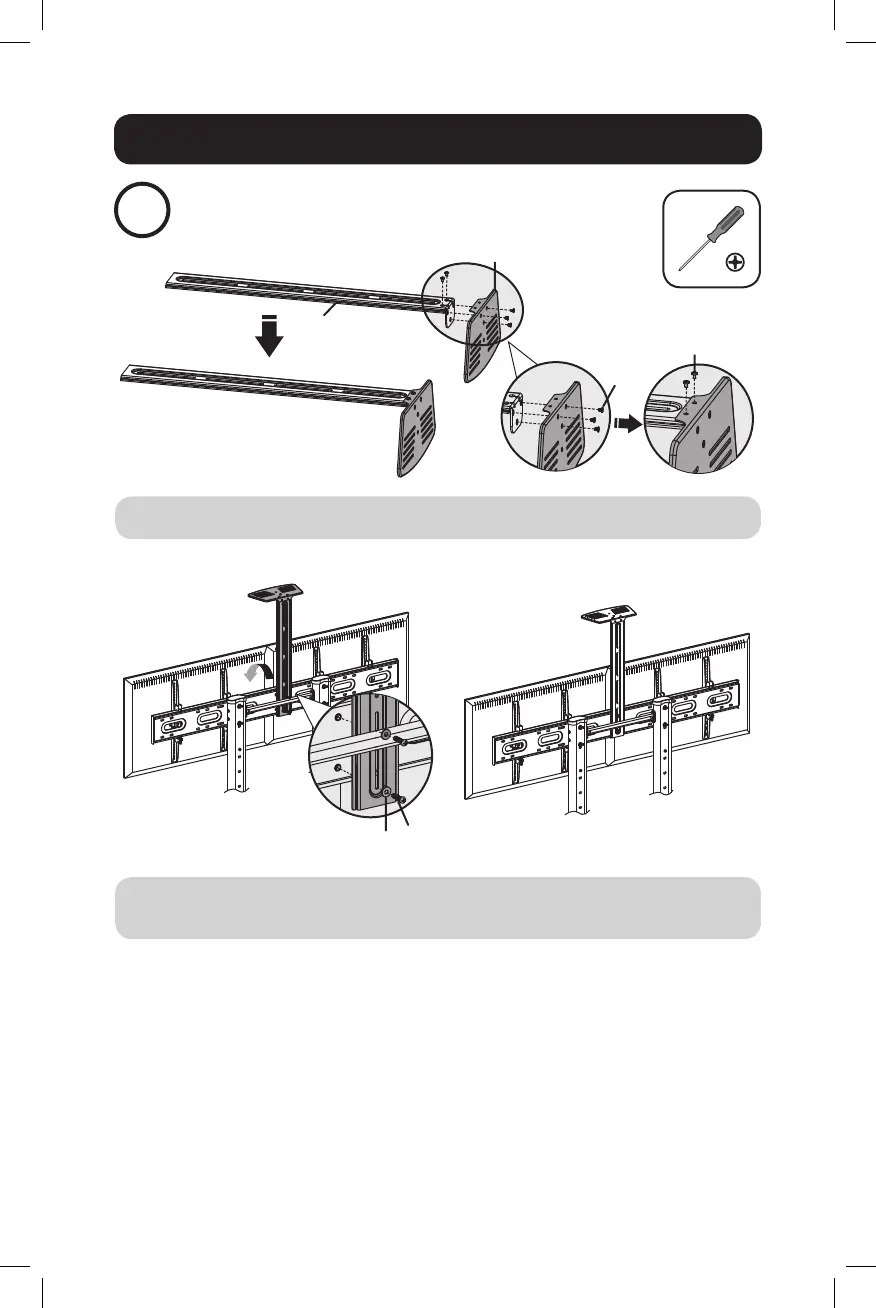

Using M4x6 screws (P-J) and (P-K), attach the camera shelf to the connecting plate.
Using M6x25 screws (P-F) and D6 washers (P-M), attach the connecting plate to the
universal plate.
M
L
P-J
P-M
P-F
P-K
Install the Camera Shelf
