Triumph 1050 Sprint User Manual

42
General Information

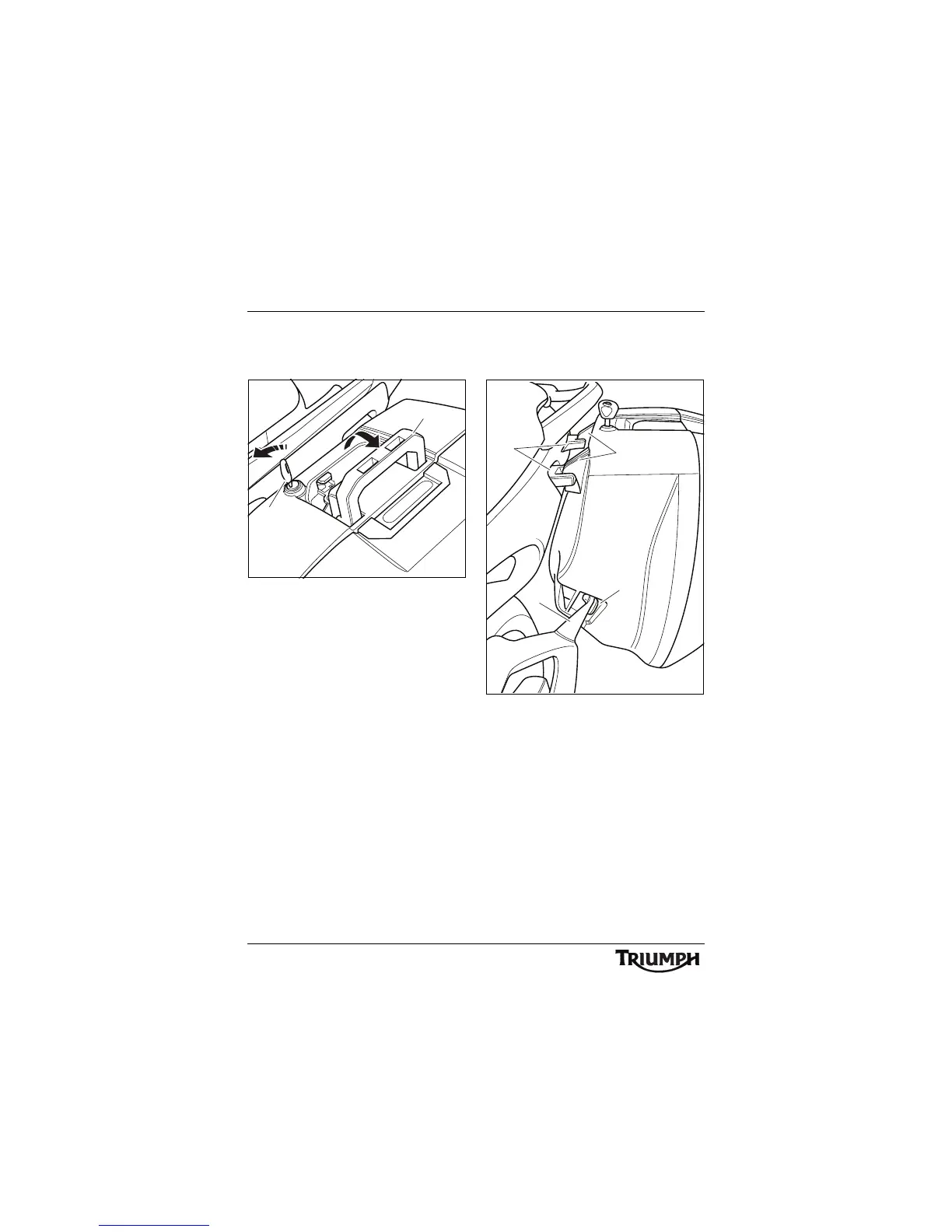

Insert the key into the lock. Turn the key to
the RELEASE position and lift the carrying
handle to its fully raised position.
1. L o c k
2. Carrying handle
Position the pannier to the motorcycle and
engage the fixed hooks of the pannier with
the pannier mounting points.
Ensure that the lower mounting bracket fits
into the locating cup moulded into the front
of the pannier.
1. Pannier fixed hooks
2. Pannier mountings
3. Locating bracket
4. Locating cup
Lock the pannier to the rail by pressing the
carrying handle to the fully closed position
whilst turning the key to the LOCK position.
Remove the key.
1
cgds
2
cgdu
2
1
3
4

Triumph 1050 Sprint Specifications

General

Engine Type	Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Displacement	1050 cc
Bore x Stroke	79 x 71.4 mm
Compression Ratio	12.0:1
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	X ring chain
Clutch	Wet, multi-plate
Gearbox	6-speed
Front Brakes	Twin 320mm floating discs, 4 piston calipers
Rear Brakes	Single 255mm disc, 2 piston caliper
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Dry Weight	210 kg
Exhaust	Stainless steel 3 into 1 exhaust system
Ignition	Digital - inductive type
Frame	Aluminum beam perimeter
Front Suspension	43mm
Rear Suspension	Monoshock with adjustable preload
Rake/Trail	24 degrees
Dimensions	Length: 2, 115 mm, Width: 760 mm, Height: 1, 210 mm
