STEP 10

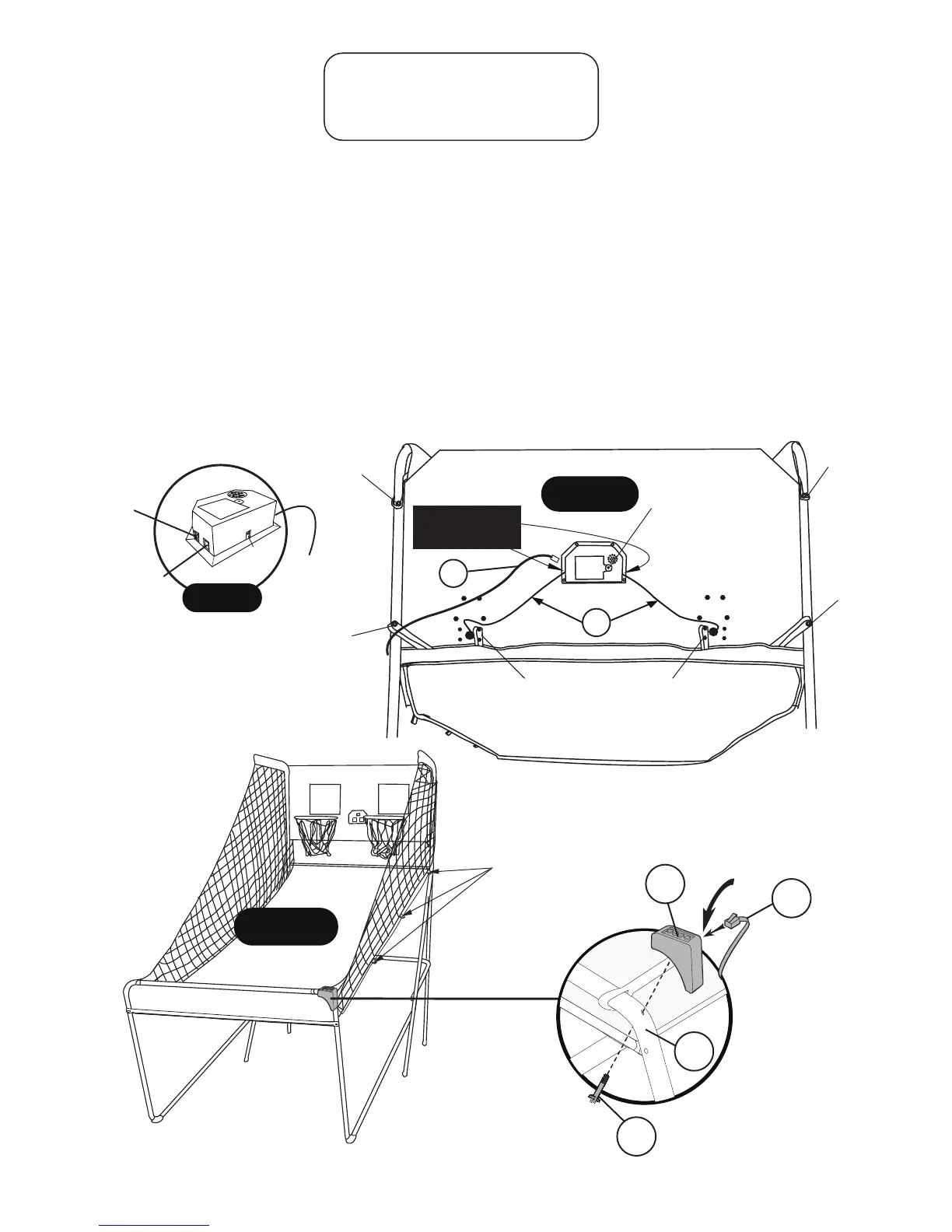

Connect P11 Mechanical Scoring Arm sensor wires to P9 Electronic Scorer as shown in FIGURE 10.
Secure Elastic Bands from P8 Ramp Chute to the back of P7 Backboard attached Wing Nuts as shown
in FIGURE 10.
Hook Elastic Loop’s over Wing Nuts in six locations as shown in FIGURE 10.
Connect P16 Scoring Control Box Wire to P9 Electronic Scorer as shown in FIGURE 10 and DETAIL D.
Now attach P14 Control Box to the left corner of the front U-Tube P5 using H7 Wing Bolt as shown in
FIGURE 11. Run the rest of P16 Control Wire through the loops on P8 Ramp Chute.
Insert 3(three) pieces “AA” batteries at the backside of electronic scoreboard.
Plug the mechanical scoring arm plug into backside of the electronic scoreboard.
Press on/off button at the bottom backside of the electronic scoreboard to play and stop the game.
