STEP 3
PARTS REQUIRED:
1 pc - H1 M6 x 35 mm Allen Head Bolt
1 pc - H4 Flat Washer
1 pc - H5 Wing Nut
Connect Middle Tubes Assembly from STEP 2 to
Lower Tubes Assembly from STEP 1 using Spring
Locks. Next, using H1 Bolt, H4 Washer and H5 Wing
Nut, connect frame braces as shown in FIGURE 3
and DETAIL A.

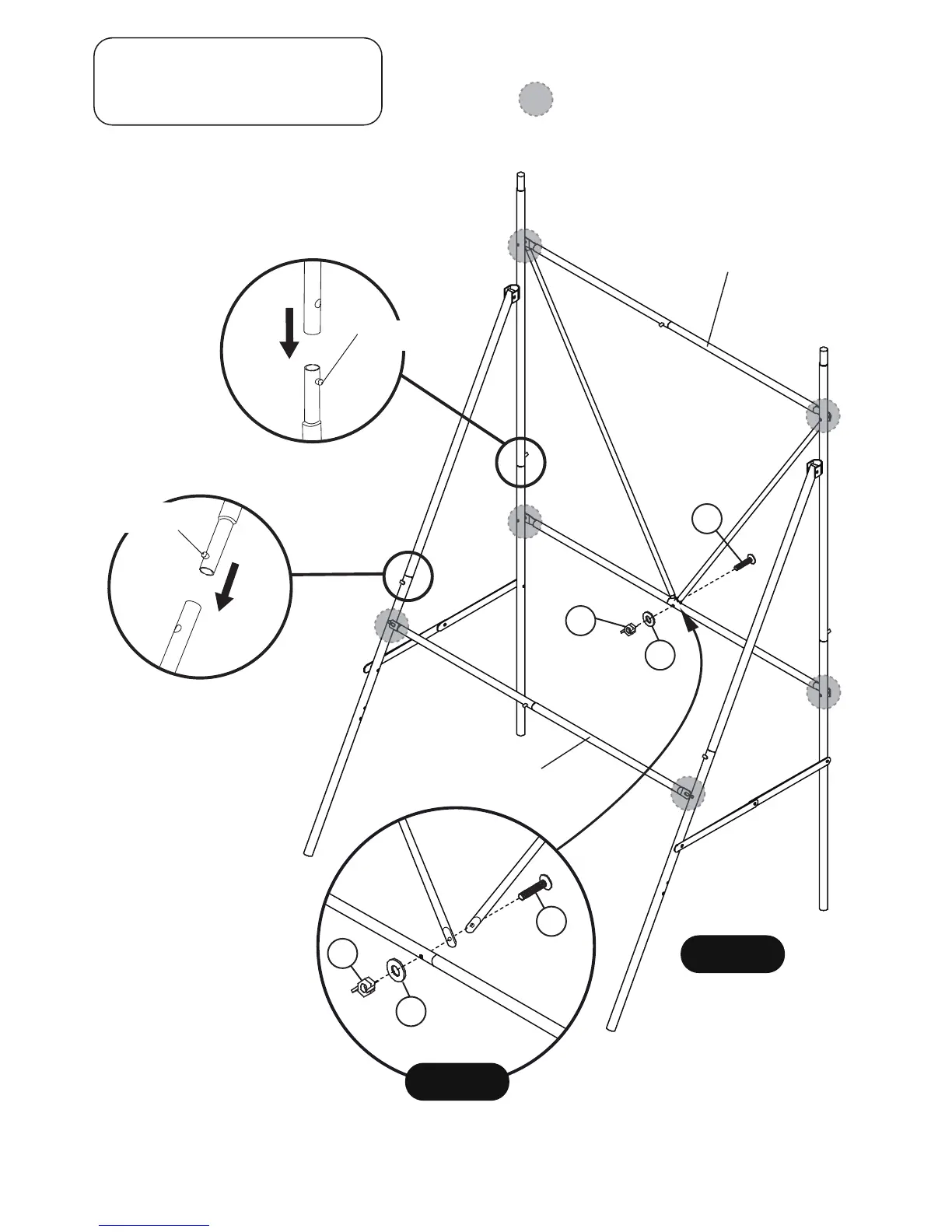

FIGURE 3
Spring Lock
Spring Lock
H5
H4
H1
DETAIL A
H4
H5
H1
ASSEMBLY FRAME
FROM STEP 2
ASSEMBLY FRAME
FROM STEP 1
NOTE: Lastly, these six points can now
be tightened using a phillips screwdriver
or allen wrench (T1) provided and plyers.
