5 of 10

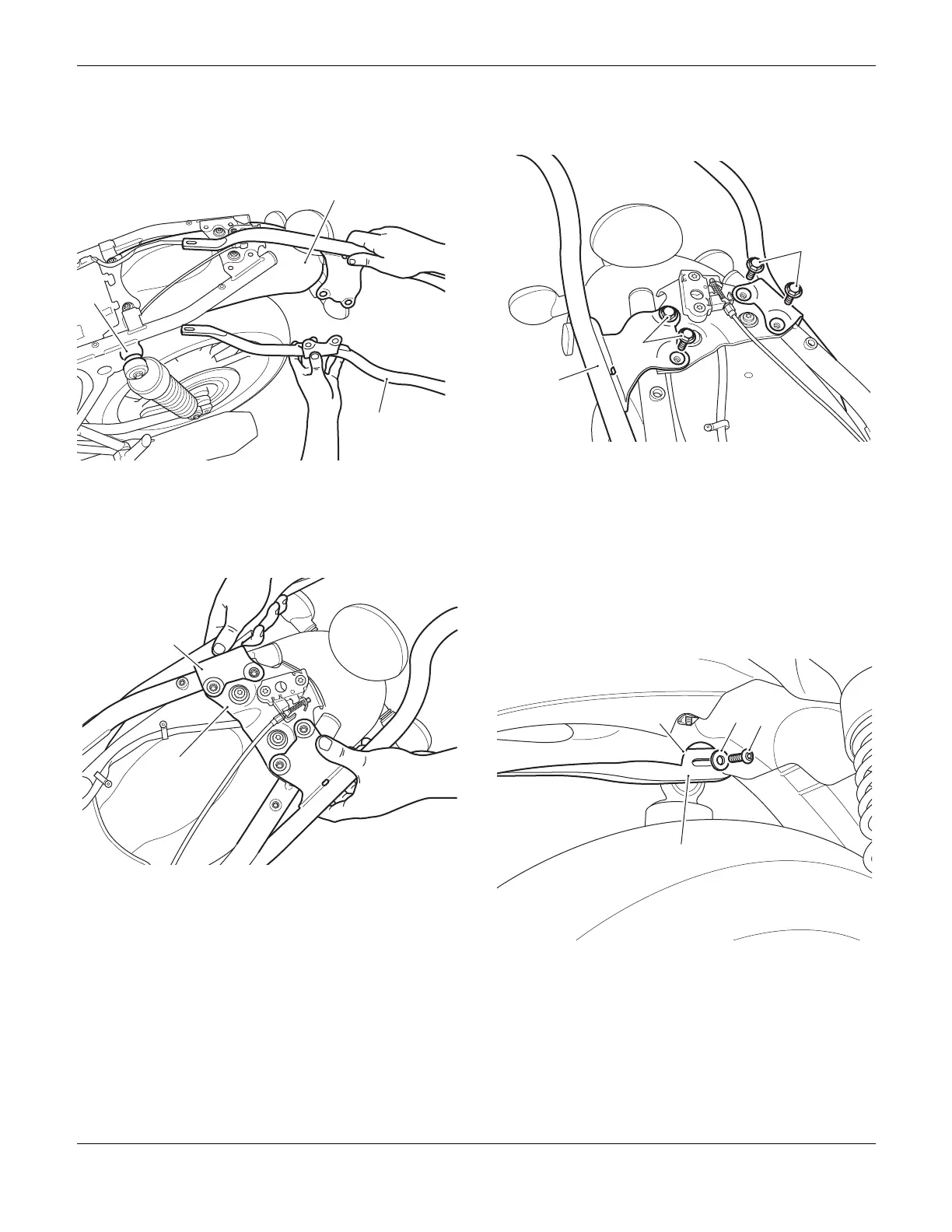

3. Collect the mounting rack from the kit and
carefully feed the front of the rack over the rear
mudguard and inside the motorcycle frame past
the rear suspension unit top mountings.
1. Mounting rack
2. Mudguard, rear
3. Rear suspension unit mounting
4. Align the rear mounting rack fixing points with
the mountings provided in the motorcycle frame.
1. Mounting rack
2. Motorcycle frame
5. Loosely fit the four M8 x 16 mm bolts from the kit
to the rear mounting rack fixing points, as
shown.
1. Bolt, M8 x 16 mm
2. Mounting rack
6. Collect an M8 x 20 mm screw and M8 washer
from the kit. Align the front left hand side of the
mounting rack with the fixing point in the
motorcycle frame. A cut-out in the rear
mudguard provides access to the fixing point. Fit
the M8 x 20 mm screw and M8 washer to hold
the mounting rack in position. Do not fully
tighten the screw at this point.
1. Mounting rack
2. Cut-out, rear mudguard
3. Screw, M8 x 20 mm
4. Washer, M8
7. Repeat step 6 for the right hand side.
8. Tighten the four rear fixings to 20 Nm. Tighten
the front fixings to 20 Nm.
