7 of 10

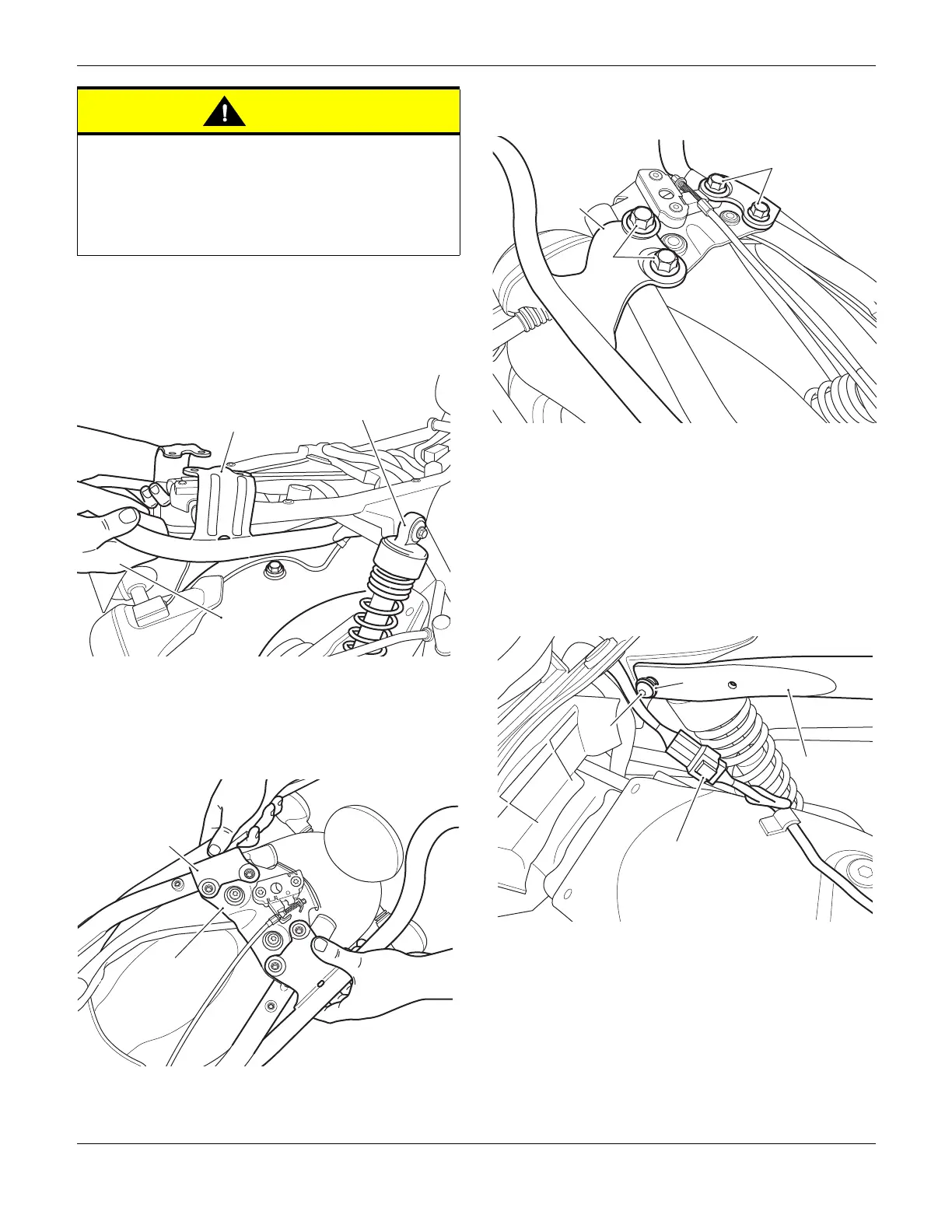

6. Collect the mounting rack from the kit and
carefully feed the front of the mounting rack
over the rear mudguard and inside the
motorcycle frame at the rear shock absorber top
mountings.
1. Mounting rack
2. Mudguard, rear
3. Rear shock absorber mounting
7. Align the rear mounting rack fixing points with
the mountings provided in the motorcycle frame.
1. Mounting rack
2. Motorcycle frame
8. Loosely fit the four M8 x 16 mm bolts from the kit
to the mounting rack fixing points, as shown.
1. Bolt, M8 x 16 mm
2. Mounting rack
9. Collect an M8 x 20 mm screw and M8 washer
from the kit. Align the front right hand side of
the mounting rack with the fixing point in the
motorcycle frame. Ensure the rear light harness
is not trapped between the mounting rack and
motorcycle frame. Fit the M8 x 20 mm screw and
M8 washer to hold the mounting rack in position.
Do not fully tighten the screw at this point.
1. Mounting rack
2. Rear light harness
3. Screw, M8 x 20 mm
4. Washer, M8
10. Repeat step 9 for the left hand side.
11. Tighten the four rear fixings to 20 Nm. Tighten
the front fixings to 20 Nm.
Care should be taken to ensure the mounting rack
does not contact any part of the motorcycle frame
or rear mudguard when it is positioned over the
mudguard and inside the frame. If the mounting rack
is allowed to contact the motorcycle frame or rear
mudguard it could result in damage to the paintwork.
