FOR SINGLE POINT RELEASE LIFTS ONLY
(NTO-9A & NTO-10A)
For lifts equipt with a single point lock releae (a leaver that release both sides simultaneously) will require these
additional steps.

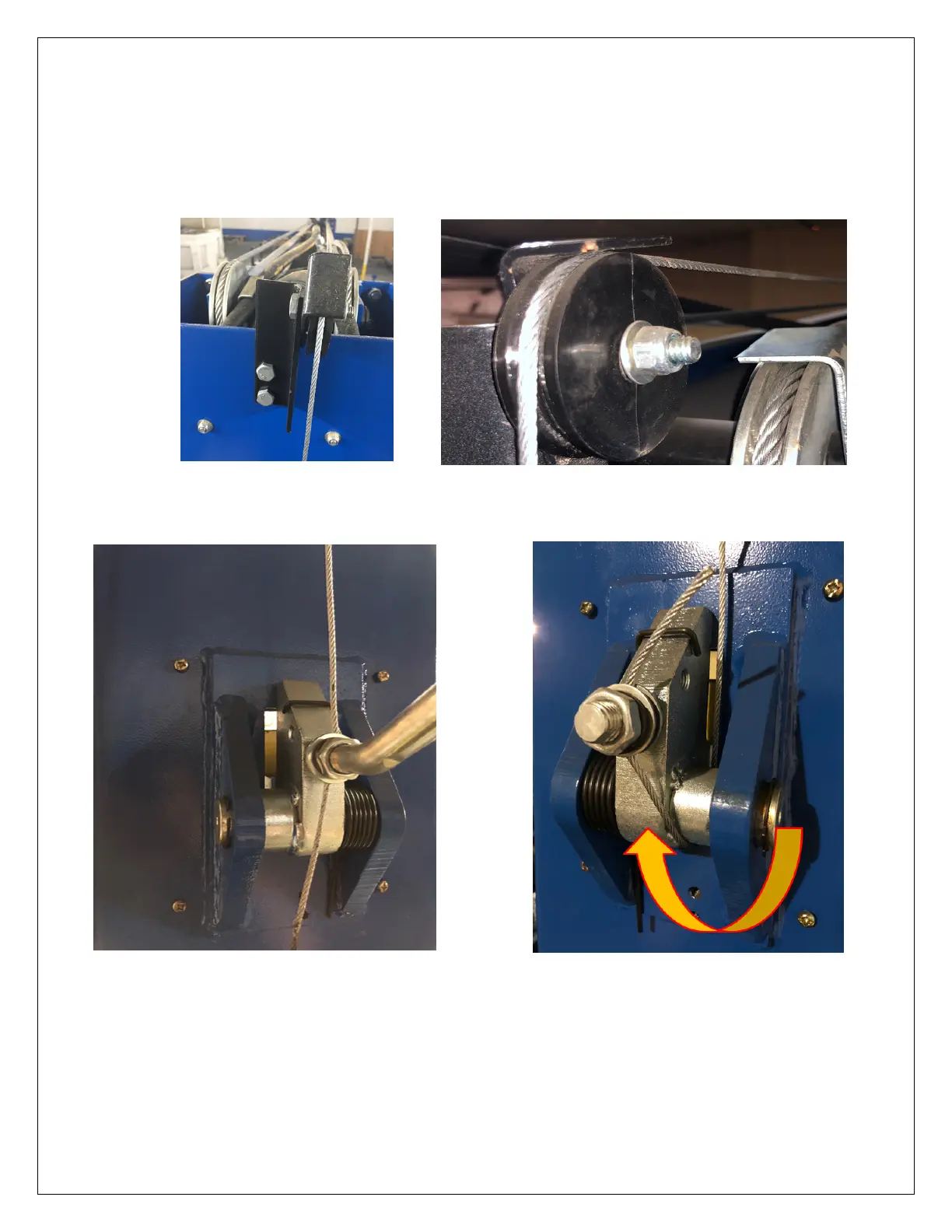

2. Insert one end of the cable into the hole in the lock lever, leaving 2-3 inches of cable sticking through, then
tighten jam nuts to clamp the cable into place in the lock lever. With the cable attached at the lever end and
1. Route cable up the column, over the release pulleys and back down to the second lock release.
routed over both release pulleys, draw the cable under the lock release shaft (as shown) and back up through
the hole in the provided stud. Secure cable end with jam nuts (same as lever side) and trim excess cable.
1a. NOTE: Pulleys are attached to the upper outside of each column with supplied hex head bolts.
