7. Support the swinging arm, remove the swinging arm pivot from the left hand side
and remove the swinging arm.

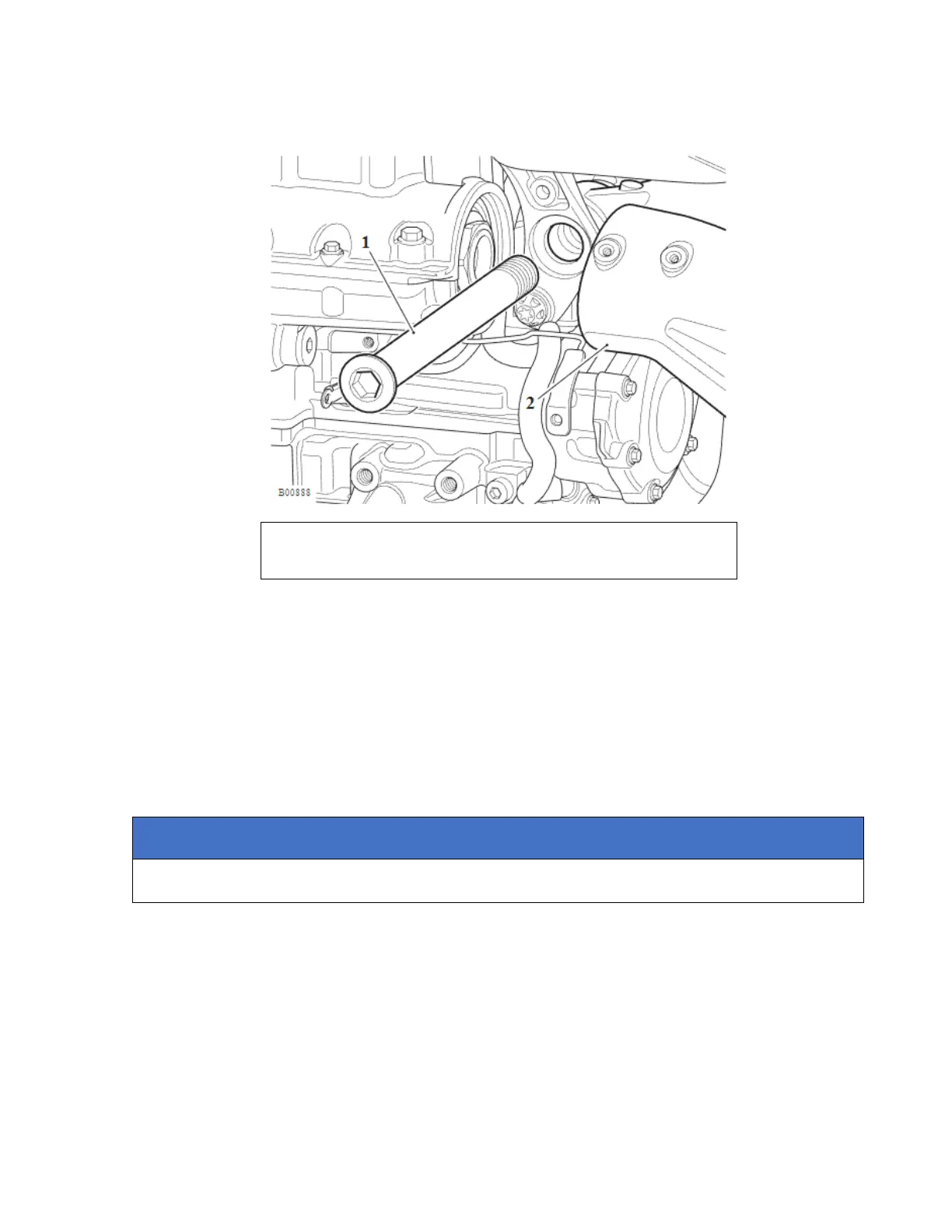

1. Pivot
2. Swinging arm
Swinging Arm – Disassembly
1. Remove the flanged spacer and seal, 32 x 42 x 4mm from the left and right hand side
outer edges.
2. Remove the seal, 30 x 37 x 4mm and spacer from the left and right hand side inner
edges.
NOTICE
The bearings cannot be removed undamaged.
3. Remove the sleeve and needle roller bearing (item 4) by drifting through from the
right hand side
