4. Release the circlip and remove the two ball bearings by drifting through from the
right hand side.

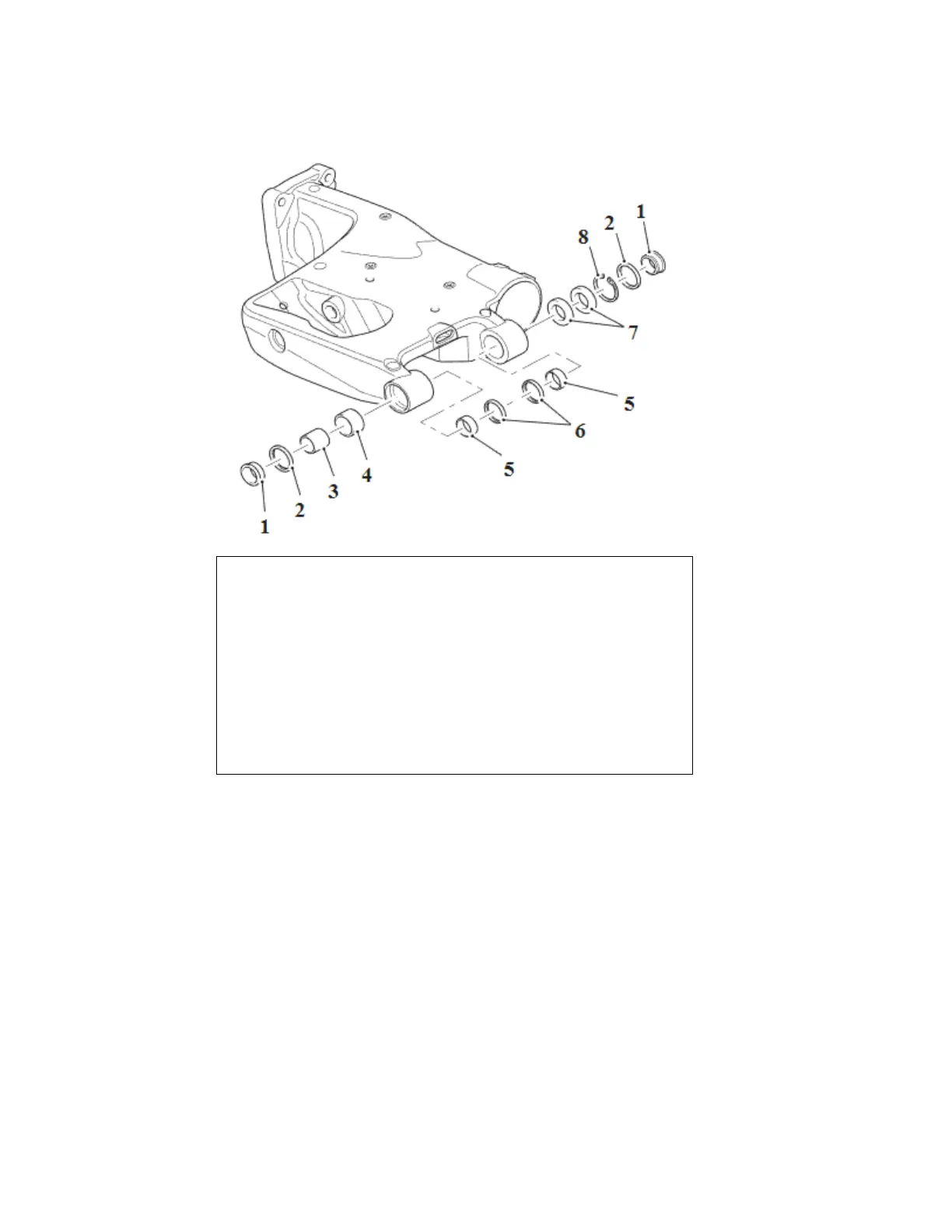

1. Flanged spacer
2. Seal, 32 x 42 x 4mm
3. Sleeve
4. Needle roller bearing
5. Spacer
6. Seal, 30 x 37 x 4mm
7. Ball bearings
8. Circlip
Swinging Arm – Inspection
1. Check the swinging arm bearings for damage, pitting, and cracks. Replace as
necessary.
2. Inspect the swinging arm spindle for damage and deformation. Replace as necessary.
3. Check the swinging arm for damage. Replace as necessary.
4. Check all bearing seals for damage, splits etc. Replace as necessary.
To Next Page
