Swinging Arm – Assembly
Make sure the motorcycle is stabilised and adequately supported.
A correctly supported motorcycle will help prevent it from falling.
An unstable motorcycle may fall, causing injury to the operator or damage to the
motorcycle.
NOTICE
Use new bearings, seals and a new circlip.
1. Fully press the two roller bearings to the shoulder in the left hand pivot housing of
the swinging arm.
2. Fit a new circlip.
3. Fit a new 32 x 42 x 4mm seal to the outside edge and a new 30 x 37 x 4mm to the
inside edge until they are flush.

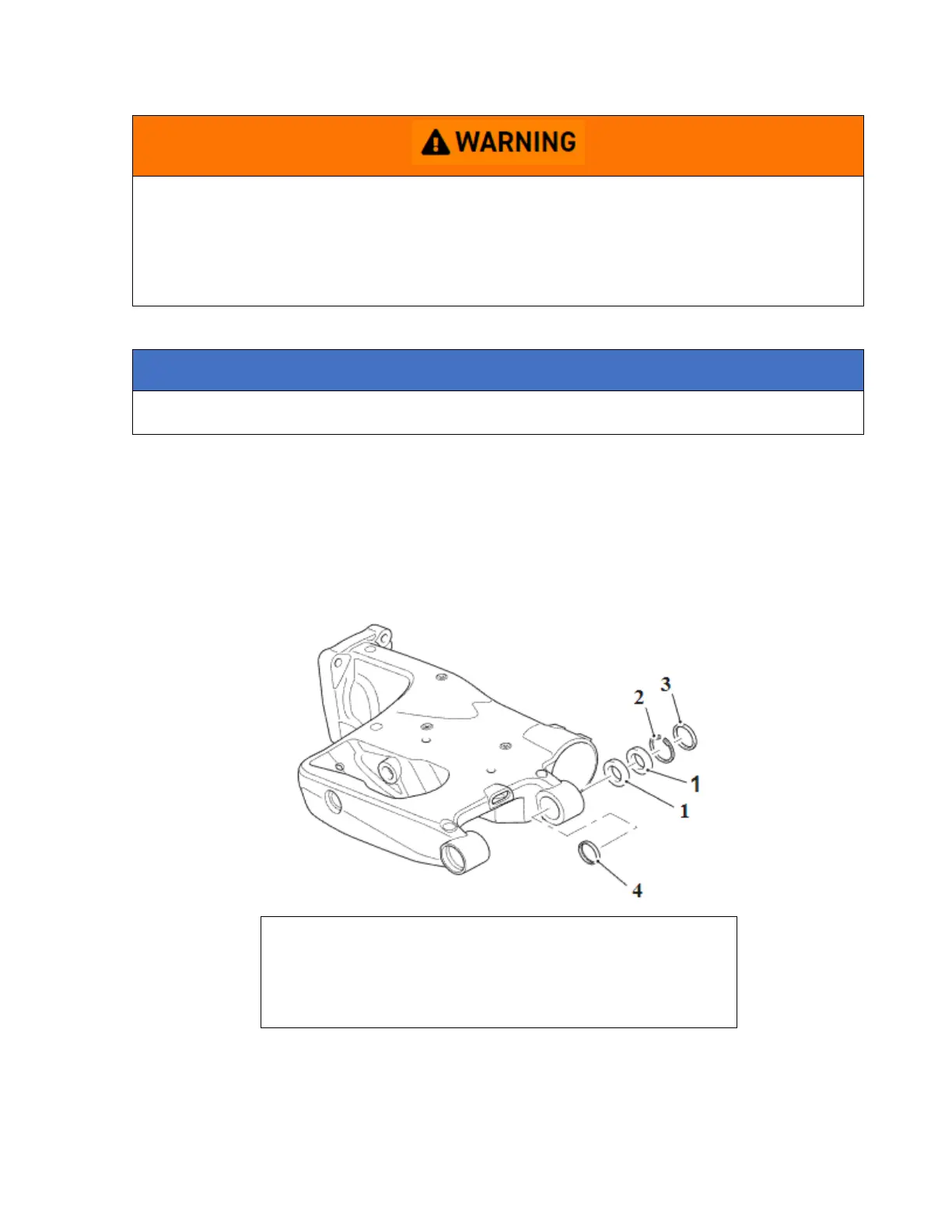

1. Ball bearing
2. Circlip
3. Seal, 32 x 42 x 4mm
4. Seal, 30 x 37 x 4mm
4. Press the needle roller bearing 15mm +/- 1mm in to the right hand pivot housing of
the swinging arm.
