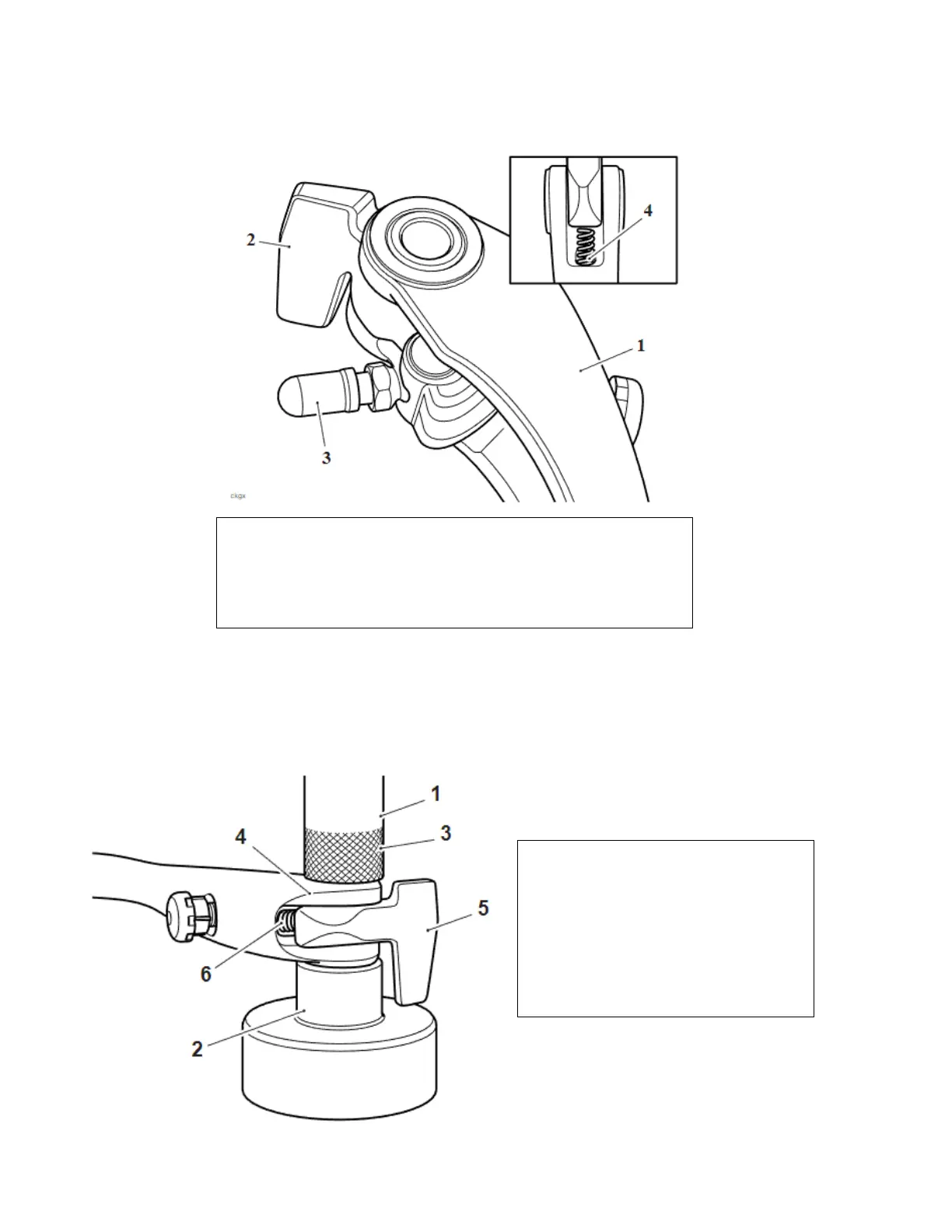

3. Align the brake lever to the brake lever pivot assembly ensuring the return spring
and push rod are located as noted during removal.
1. Brake lever
2. Pivot assembly
3. Push rod
4. Spring
6. Using the service tool align the installer piece to the brake lever and gently push
down on the mandrel locating the installer piece, through the lever and pivot.
7. Place the lower surface of the brake lever onto the support piece, and then using a
press push the pivot sleeve through the brake lever pivot until the mandrel touches
the upper brake lever surface.
