4. Back bleed the rear brake master cylinder (see Master Cylinder Back Bleed in
Bleeding the Rear Brake).
5. Bleed the rear brakes (see Bleeding the Rear Brake).
6. Check the front brakes for correct operation and fluid leaks. Rectify as necessary.
Removal and Installation - ABS Components

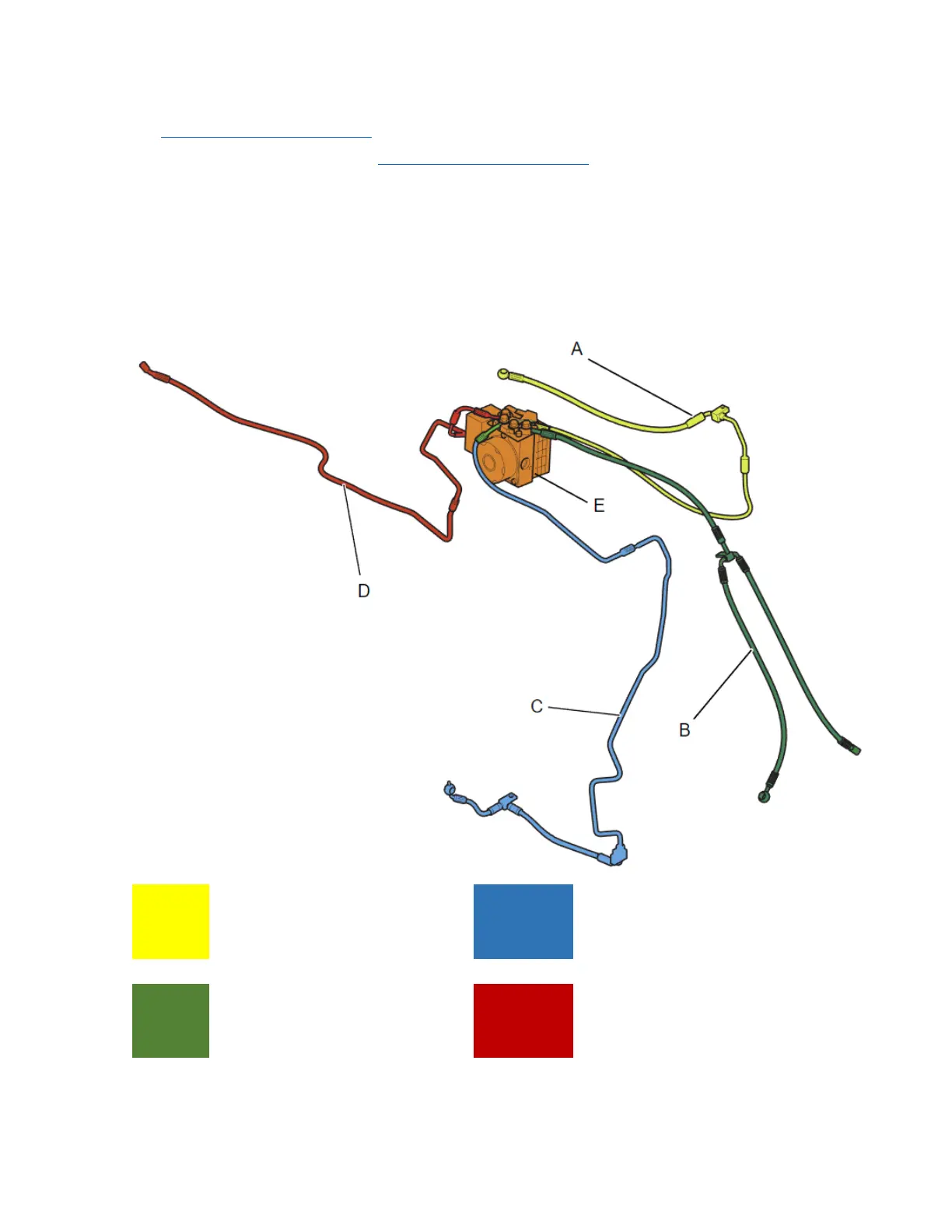

ABS Hydraulic Circuit Layout
A. Front Brake Circuit from
Master Cylinder to ABS
Modulator
C. Rear Brake Circuit from
Master Cylinder to ABS
Modulator
B. Front Brake Circuit from
ABS Modulator to Front
Calipers
D. Rear Brake Circuit from
ABS Modulator to Rear
Caliper
