1116
Front ABS Wheel Speed Sensor – Removal
Make sure the motorcycle is stabilised and adequately supported.
A correctly supported motorcycle will help prevent it from falling.
An unstable motorcycle may fall, causing injury to the operator or damage to the
motorcycle.
Perform the following operations:
• Seat - Removal
• Battery - Removal
• Front Wheel - Removal
• Fuel Tank - Removal
Note the routing of the front ABS wheel speed sensor harness and its retaining clips
for installation.
The front ABS wheel speed sensor multiplug is identified as the white connector
located above the camshaft cover, near the left hand side.
1. Disconnect the front ABS wheel
speed sensor multiplug from the
main harness.
2. Route the sensor harness down
to the front brake caliper.
3. Detach the sensor harness from
the clips on the left front brake
line.

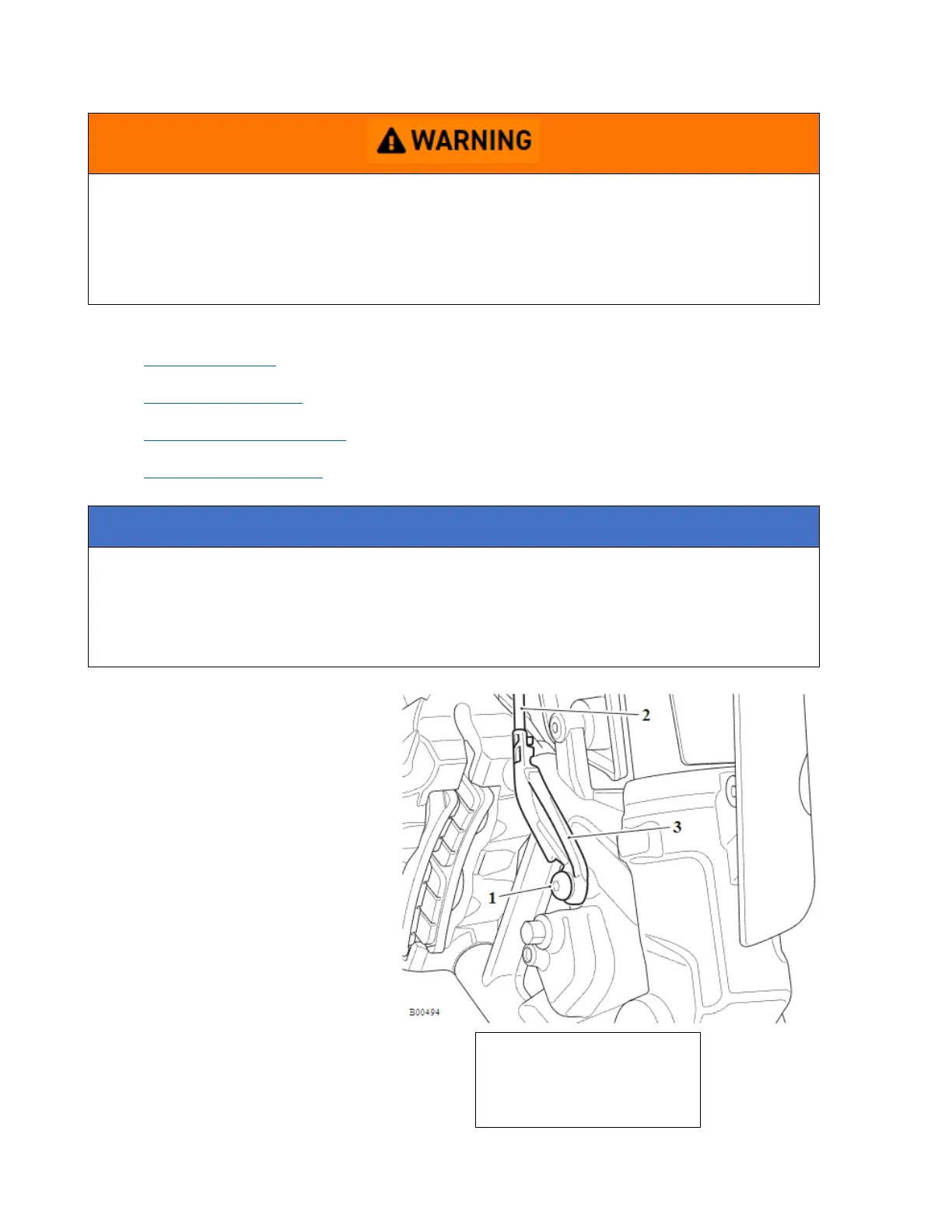

4. Release the fixing, detach the
wheel speed sensor harness and
remove its conduit. Discard the
fixing.
1. Fixing
2. Harness
3. Conduit
