Front Subframe – Removal
Make sure the motorcycle is stabilised and adequately supported.
A correctly supported motorcycle will help prevent it from falling.
An unstable motorcycle may fall, causing injury to the operator or damage to the
motorcycle.
Perform the following operations:
• Seat - Removal
• Battery - Removal
• Flyscreen - Removal
• Headlight Assembly - Removal
Note the positions of the connectors on the under side of the flyscreen mounting for
installation.

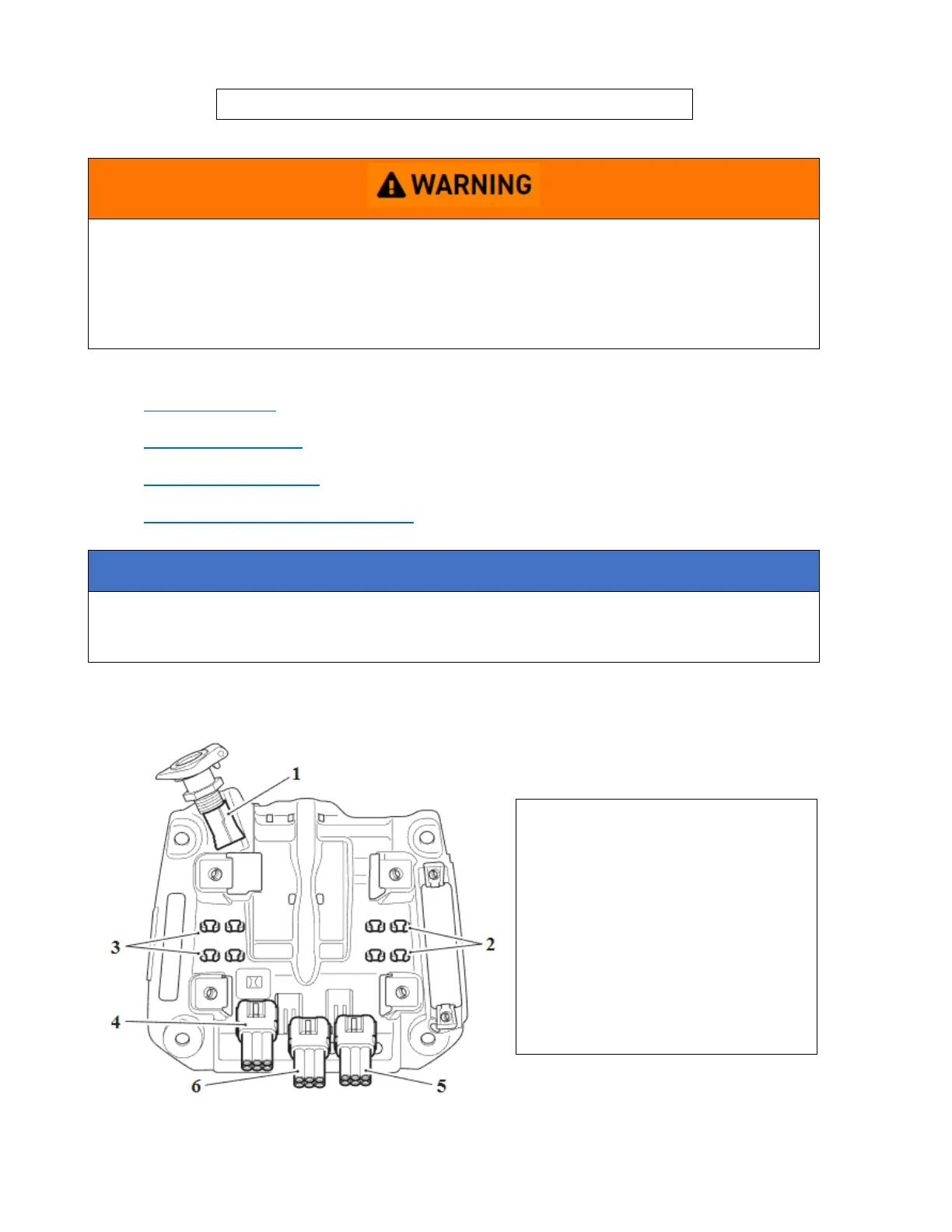

1. Turn the flyscreen mounting over and detach the connectors from it.
1. Accessory socket
2. Right hand front direction
indicator (identified with red
tape on harness)
3. Left hand front direction
indicator
4. Left hand headlight
5. Right hand headlight
6. Electronic steering lock
