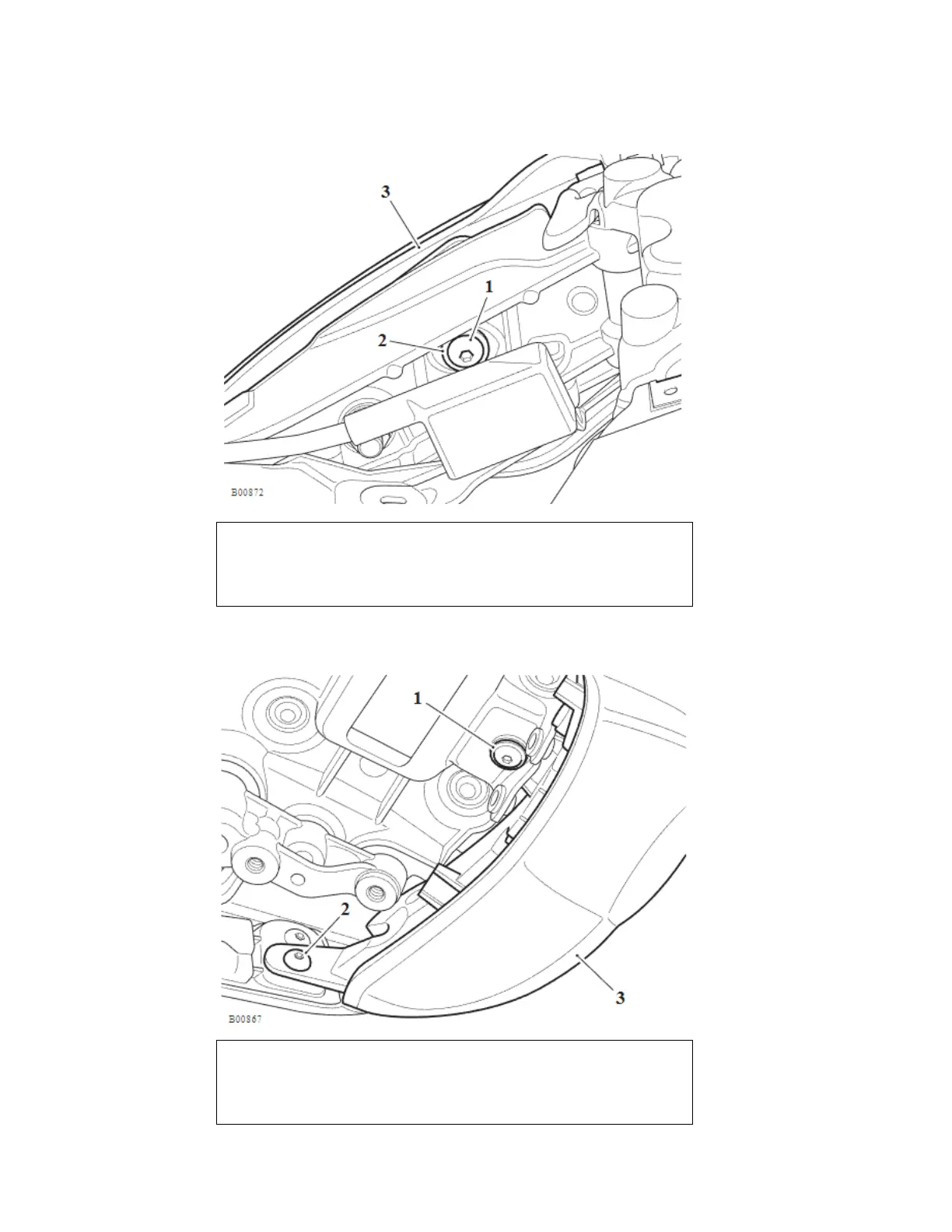

1. Manouevre the mudguard onto the rear subframe, fit the front fixings and tighten to
3 Nm.
1. Fixings (one on right hand side shown)
2. Washer
3. Rear mudguard
2. Fit the rear light centre fixing and washer. Tighten the fixing to 3 Nm. 3. Tighten the
rear light side fixings to 3 Nm.
1. Rear light centre fixing
2. Rear light side fixing (right hand side shown)
3. Rear light
