NOTICE
The front lock nut for the rear subframe centre piece is fastened to an encapsulated
stud.
If the stud is loosened or removed a new stud must be fitted.
7. Release the fixings and remove the rear subframe rear piece. Discard the lock nuts
and the stud if it is loosened or removed.

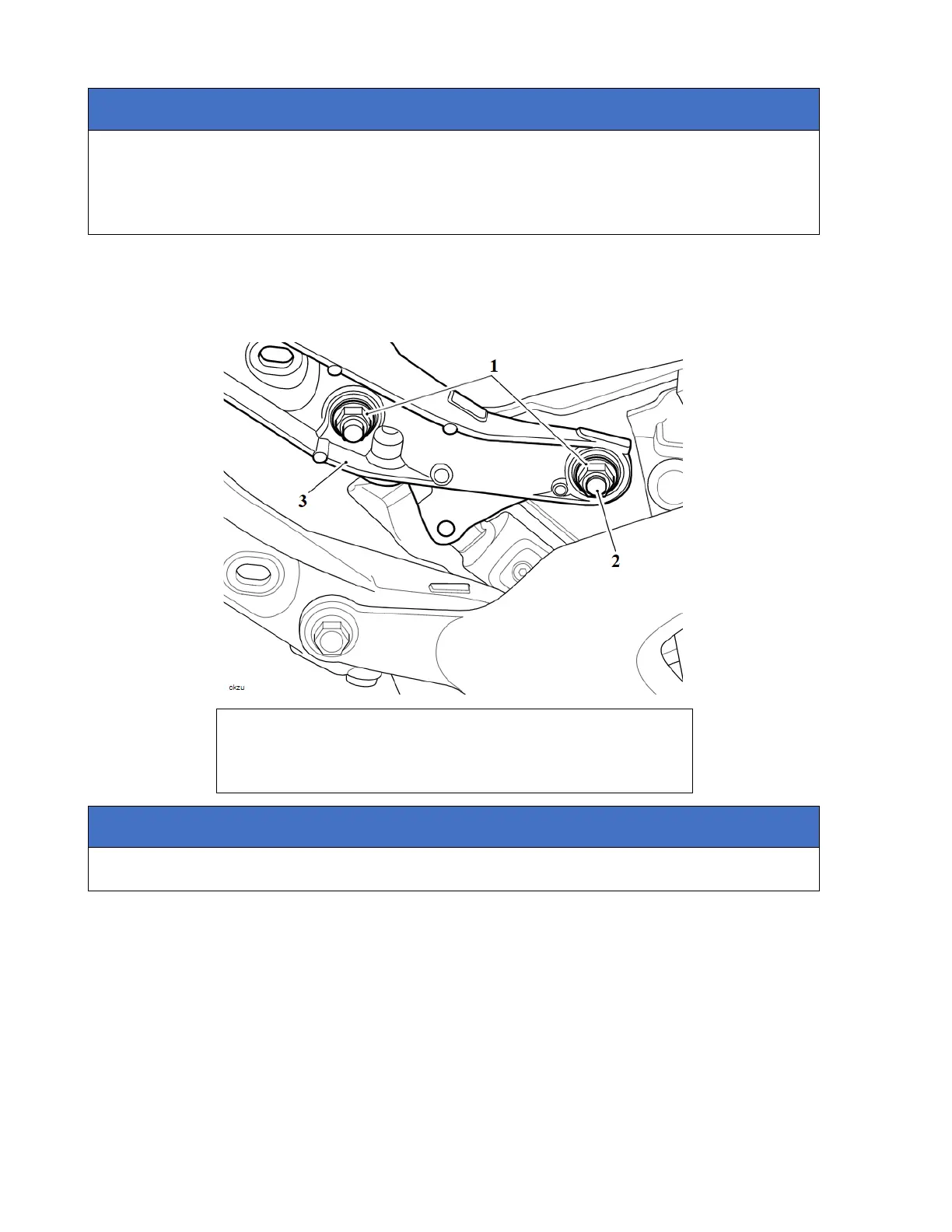

1. Lock nut
2. Stud
3. Rear piece (left hand side shown)
NOTICE
Note that there is a lock nut fitted to the upper fixings for the subframe front pieces.
