3. Turn the headlight bezel clockwise to lock the tension ring and the headlight bezel
together. Make sure the three retaining lugs on the bezel and tension ring are
engaged.

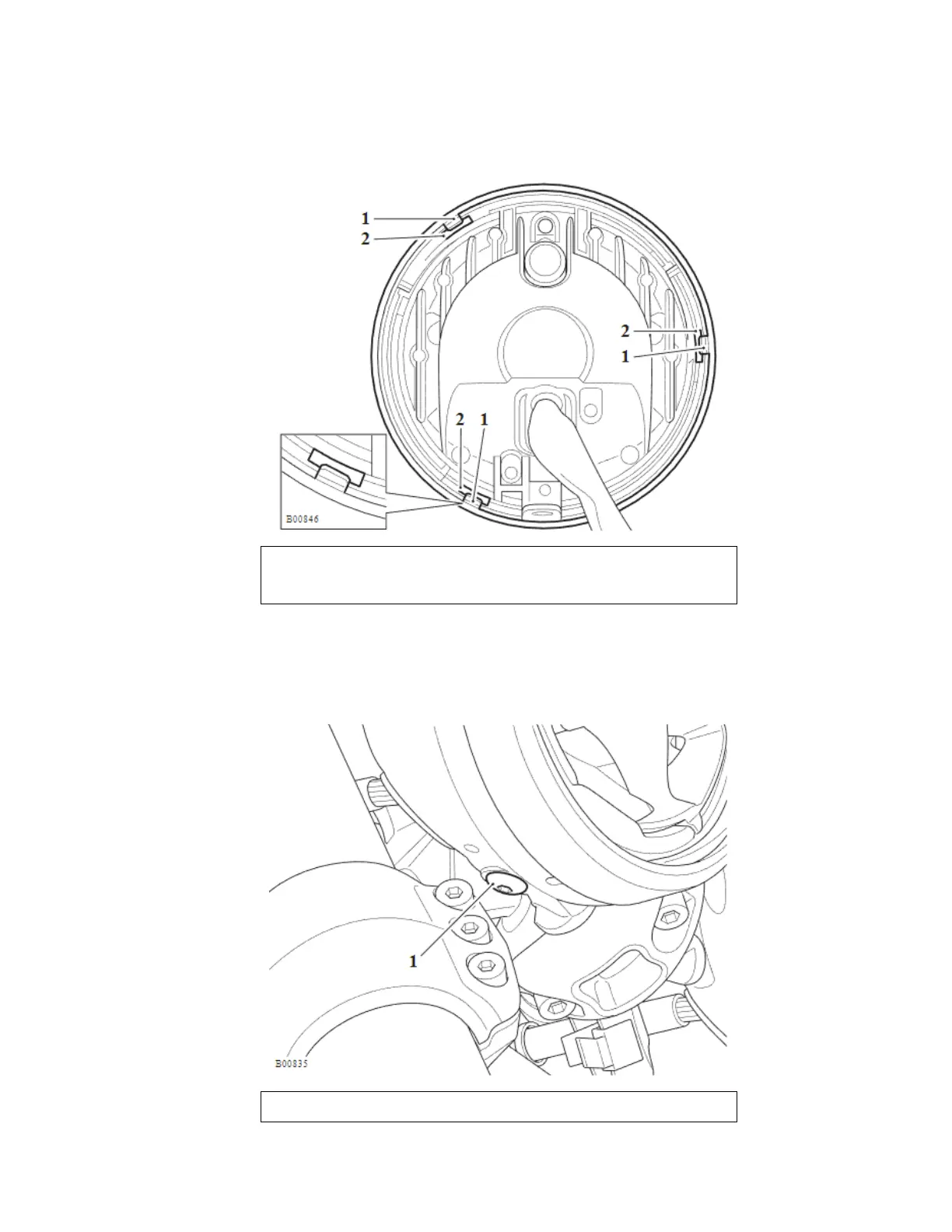

1. Retaining lug (bezel)
2. Retaining lug (tension ring)
4. Route the headlight harnesses as noted for removal and secure to the S-clips as
noted for removal.
5. Fit the headlight LED assembly to the headlight bowl, fit the grommet to the rear of
the headlight bowl and tighten the fixing to 4 Nm.
1. Fixing
