3. Disconnect the two handlebar subharness connectors and the twist grip position
sensor connector from the main harness.
4. Cut the cable ties securing the harness to the flyscreen mounting.
5. Release the fixings and detach the flyscreen mounting from the front subframe.

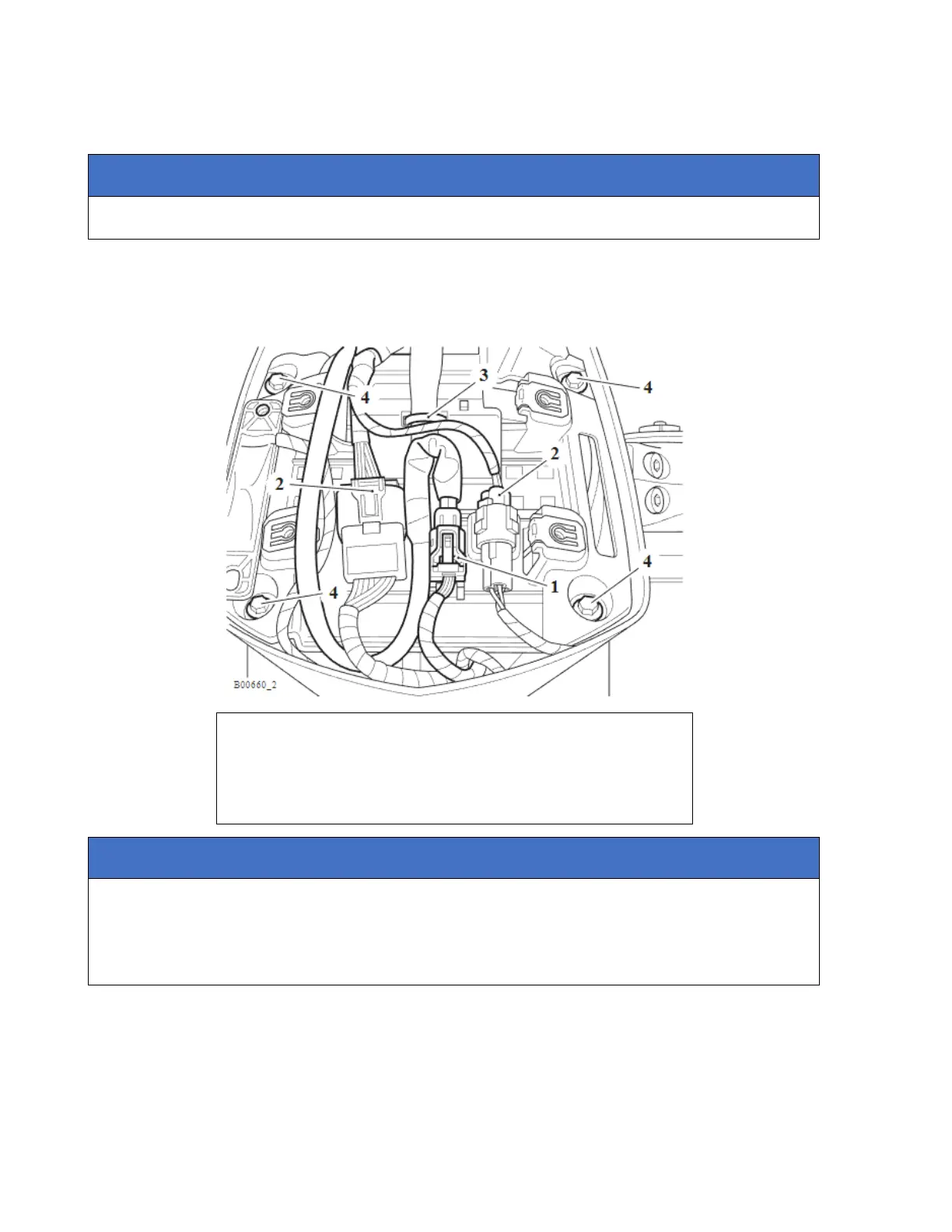

1. Twist grip position sensor connector
2. Handlebar sub harness connectors
3. Cable tie (one of two shown)
4. Flyscreen mounting fixings
Note the routing of the front direction indicator harnesses for installation.
The harness for the right hand direction indicator can be identified by the red tape on
it.
