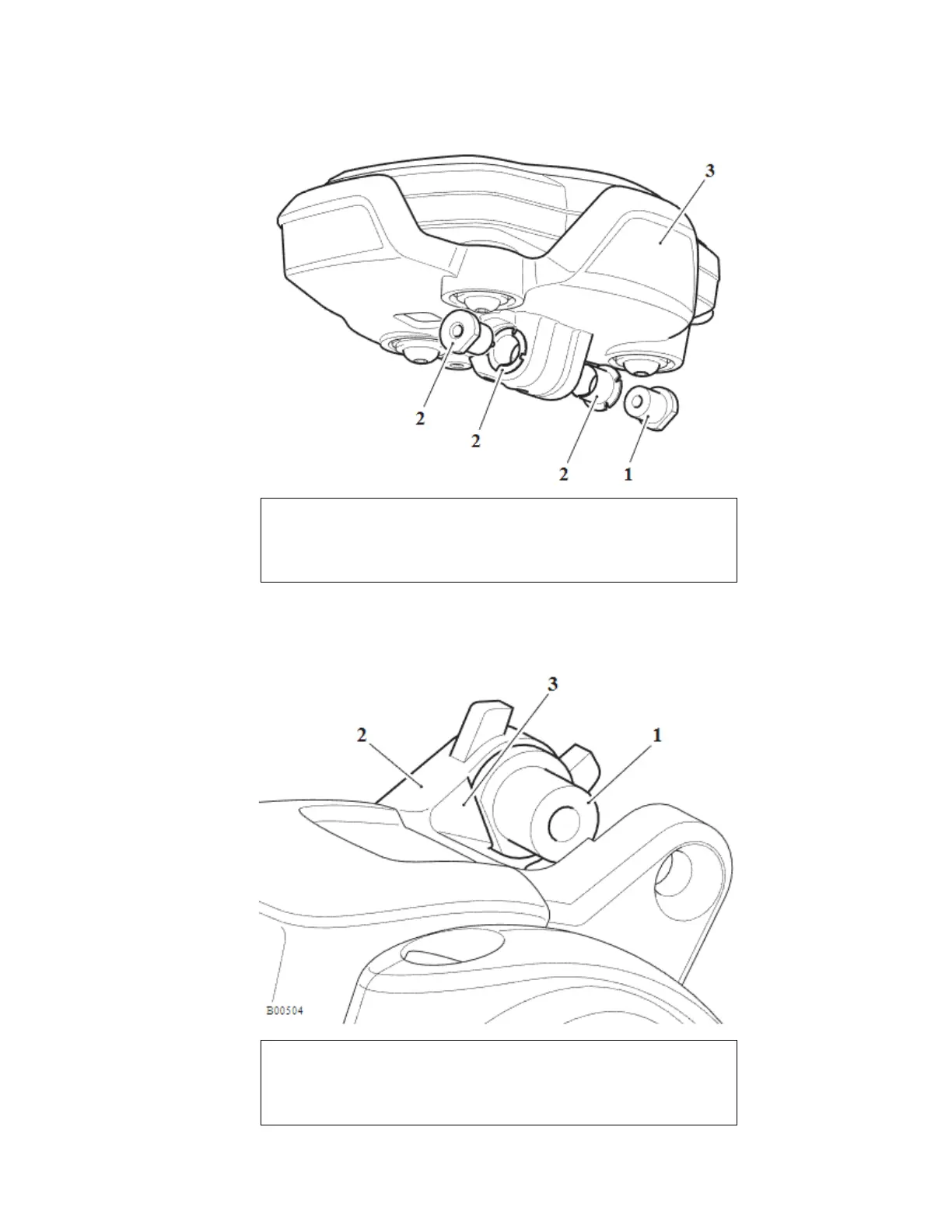

3. Make sure the bearings and the flanged pins are fitted to the Instruments mounting
plate.
1. Flanged pin
2. Bearing
3. Mounting
4. When fitting the instruments assembly to the instruments riser, make sure the flat
edge on the flanged pins align with the flat edge on the riser (instruments removed
for clarity).
1. Flanged pin
2. Instruments riser
3. Flat edge
