4. Carefully fit the starter motor to the crankcase.
5. Fit the ground cable and Triumph shift assist harness bracket as noted for removal
and tighten its fixings to 9 Nm.
6. Fit the starter cable to its connection pole and tighten the nut to 5 Nm.
7. Refit the rubber boot.
8. Fit the starter motor cover tighten the M6 x 20 mm fixings to 9 Nm.
9. Tighten the M6 x 42 mm fixings to 7 Nm.

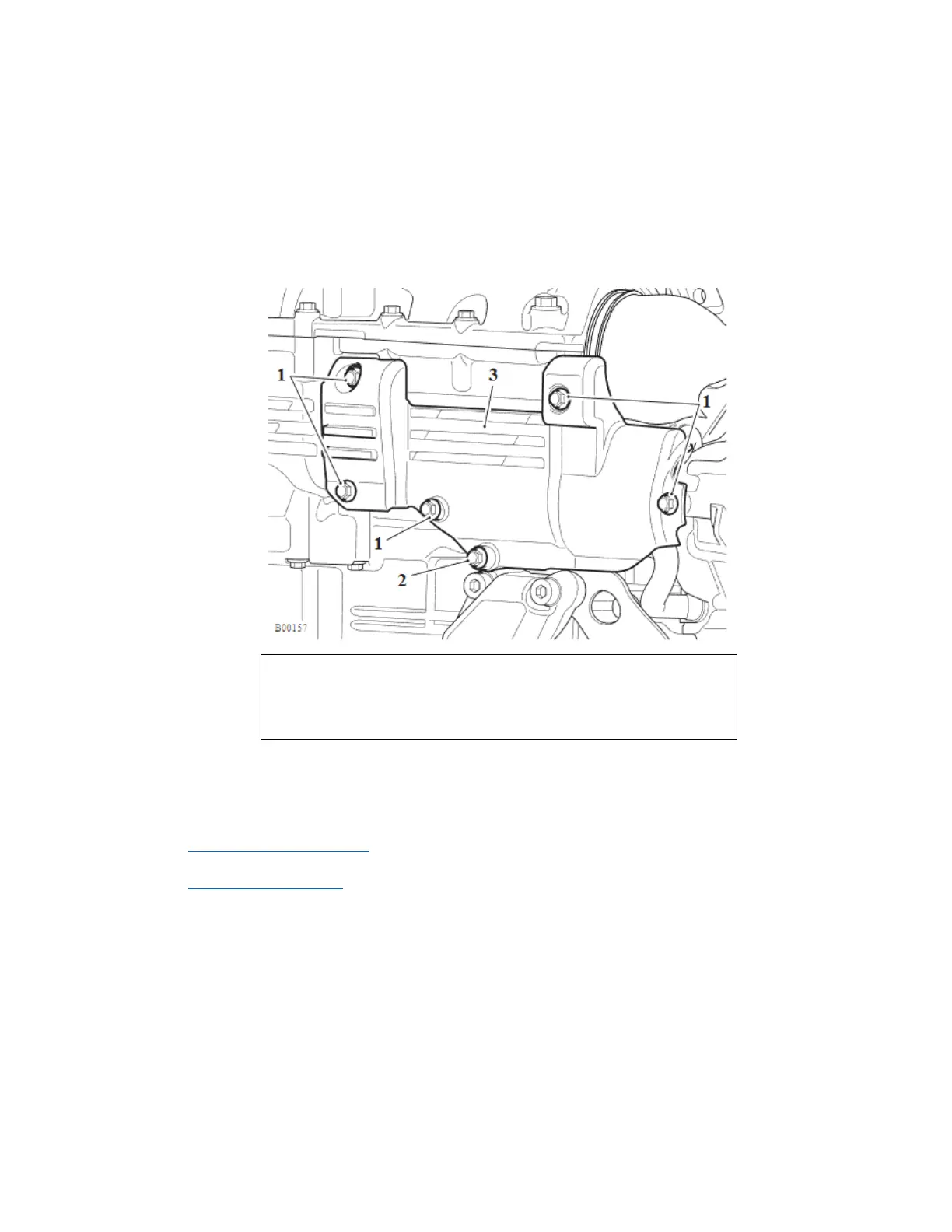

1. Fixings M6 x 20mm
2. Fixing M6 x 42mm
3. Starter motor cover
Perform the following operations:
• Battery - Installation
• Seat - Installation
