Low Frequency (LF) Antenna – Removal
Make sure the motorcycle is stabilised and adequately supported.
A correctly supported motorcycle will help prevent it from falling.
An unstable motorcycle may fall, causing injury to the operator or damage to the
motorcycle.
Perform the following operations:
• Seat - Removal
• Battery - Removal
Note the routing of the LF antenna harness for installation.
Note the orientation of the LF antenna for installation.
Front Low Frequency (LF) Antenna
1. Remove the flyscreen (see Flyscreen - Removal).
2. Remove the fixings and detach the LF antenna from the flyscreen mounting.
3. Disconnect the LF antenna electrical connector from the main harness and remove
the LF antenna.

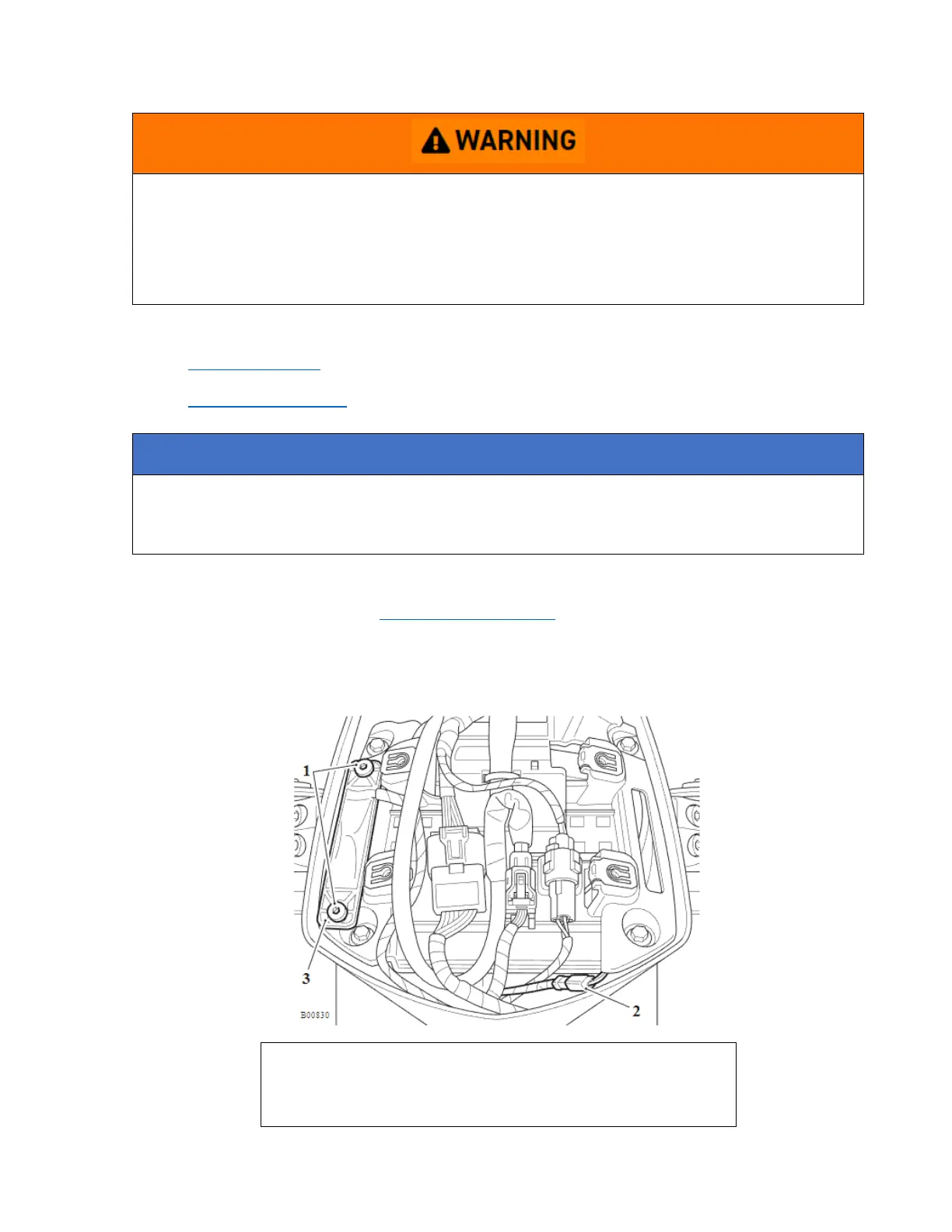

1. Fixings
2. Electrical connector
3. LF Antenna
