Rear Low Frequency (LF) Antenna
1. Remove the passenger seat backrest (see Passenger Seat Backrest - Removal).
2. Remove the rear mudguard (see Rear Mudguard - Removal).
To prevent damage to the rear mudguard painting finish, place the mudguard on a
clean, flat surface which is covered with a soft cloth.
Note the orientation of the left hand mudguard carrier for installation.
3. Remove the fixing securing the rear light to the left hand mudguard carrier.
4. Release the fixings and remove the left hand mudguard carrier.

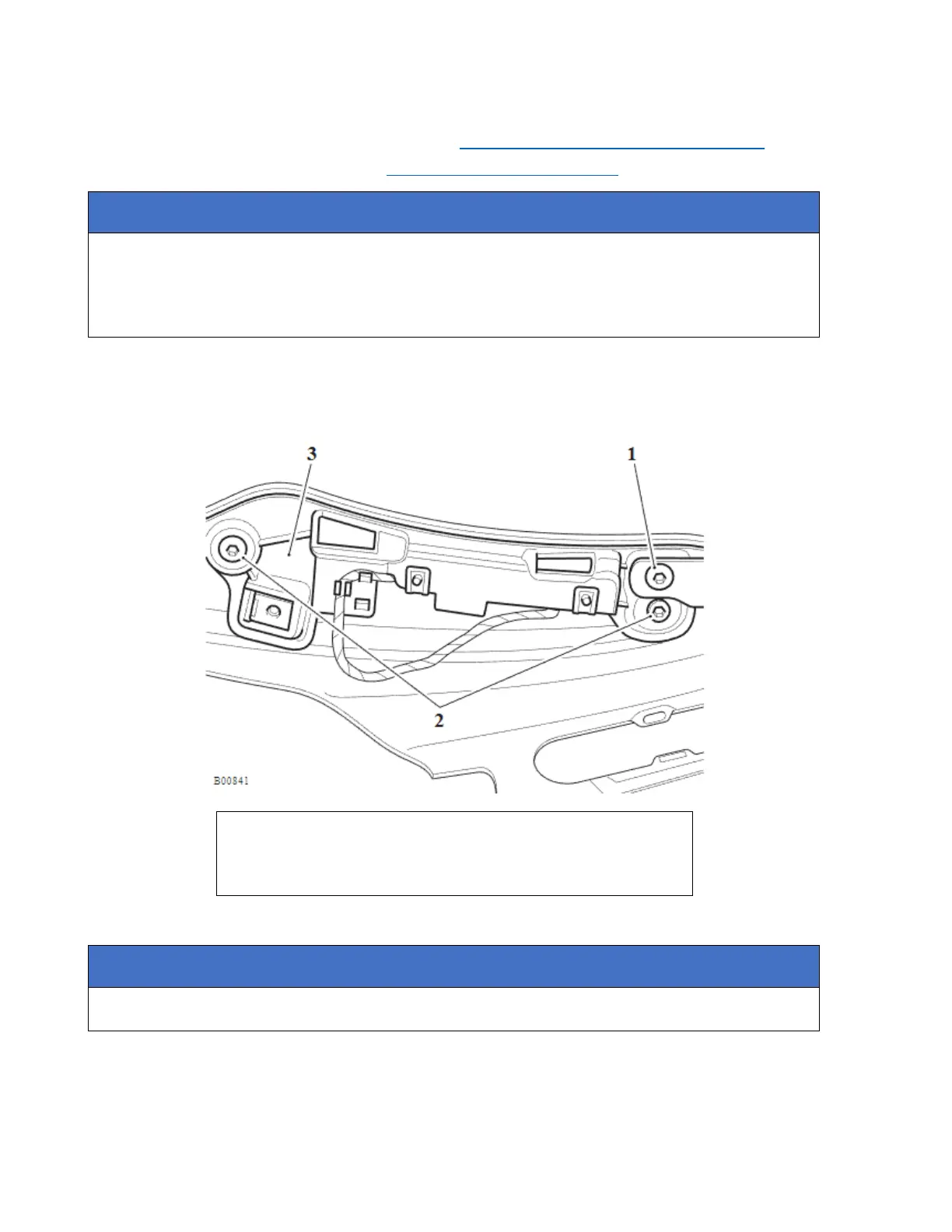

1. Rear light fixing
2. Fixings
3. Left hand mudguard carrier
Note the routing of the LF antenna harness for installation.
