3. Set the scale on service tool T3880160 to the level specified (see the fork oil table or
illustration below for the correct level setting).

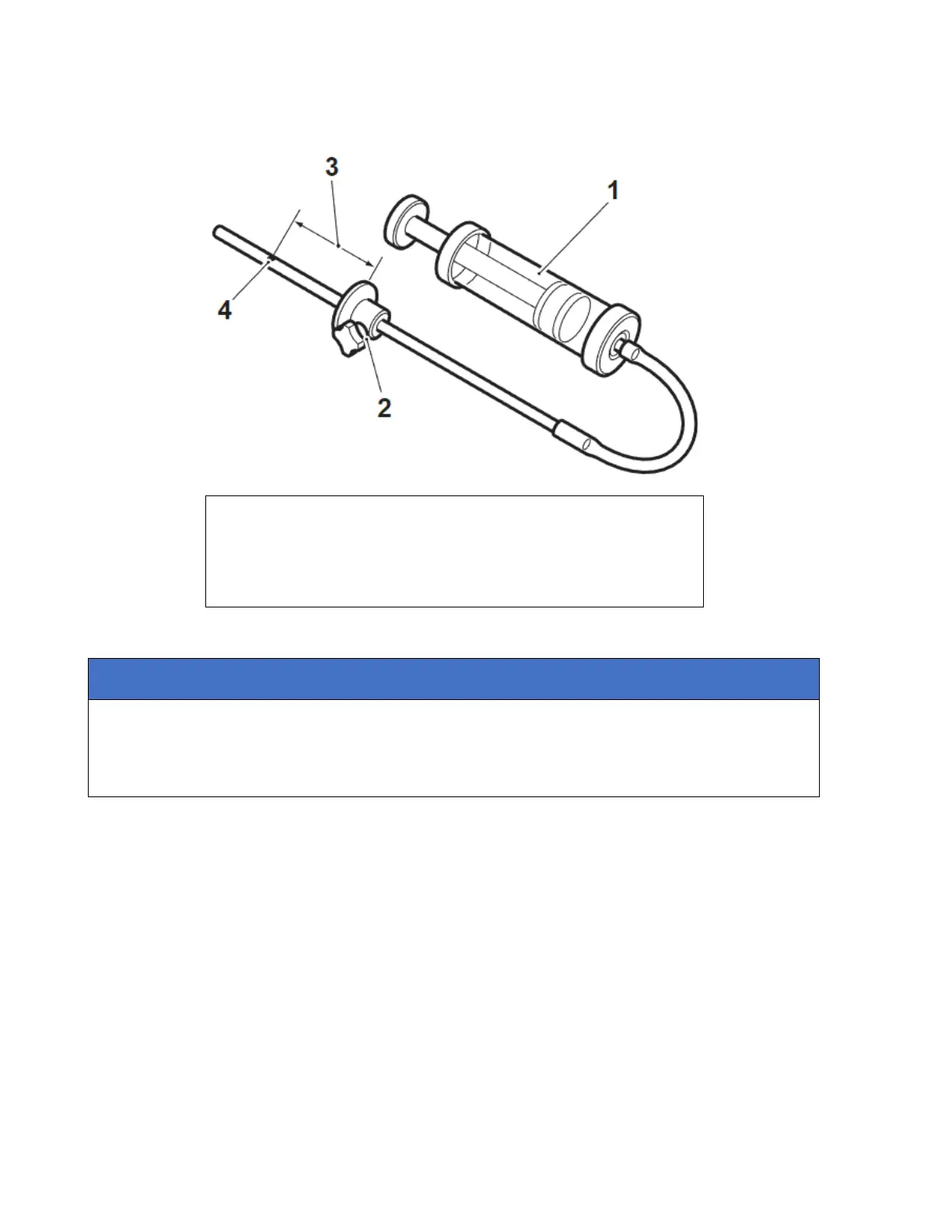

1. T3880160 - Fork Oil Filler/Evacuator
2. Adjustment plate
3. Scale area
4. Hole (zero position)
Zero level on the tool is set at the small exit hole in the side of the scale tube, NOT AT
THE END TIP. Do not attempt to block this side hole as this will cause the final fluid
level to be incorrect.
4. Insert the scale end of the tool into the fork inner tube.
5. Hold the tool adjuster plate level with the upper surface of the fork inner tube and
draw fluid into the syringe until fluid flow ceases (empty the syringe if the body
becomes full before fluid flow stops).
6. The fluid level in the fork is now set to the height set on the tool scale. Check the tool
scale setting and repeat the process if incorrectly set.
