NOTICE
Note there are two M6 x 55 mm fixings with copper washers and are located between
cylinders one and two spark plugs for installation. The remaining twelve fixings are M6
x 30mm.
Note the position of the right hand side panel for installation.
Note the position of the brackets on the front and rear of camshaft cover for
installation.
8. Progressively release the camshaft cover fixings.

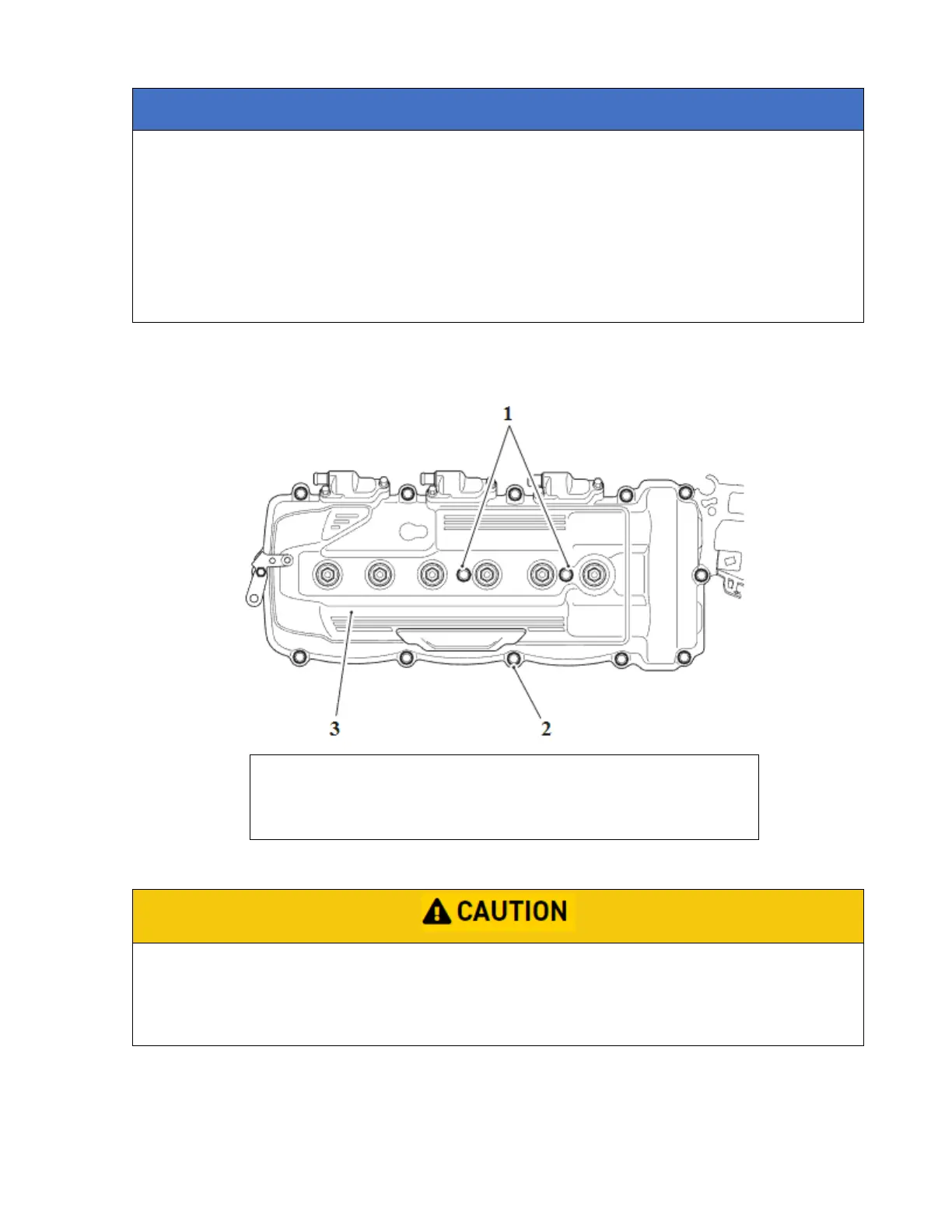

1. M6 x 55 mm fixings
2. M6 x 30 mm fixings
3. Camshaft cover
Never use a lever to remove the camshaft cover from the cylinder head.
Using a lever will cause damage to the cylinder head and camshaft cover, which could
lead to an oil leak.
9. Raise the camshaft cover and manoeuvre it towards the left hand side of the engine,
where it can be removed.
