12. When the snap ring aligns with the snap ring groove, release the vice and move one
end of the snap ring into the groove. Slowly release the plunger to make sure it is
held in place.

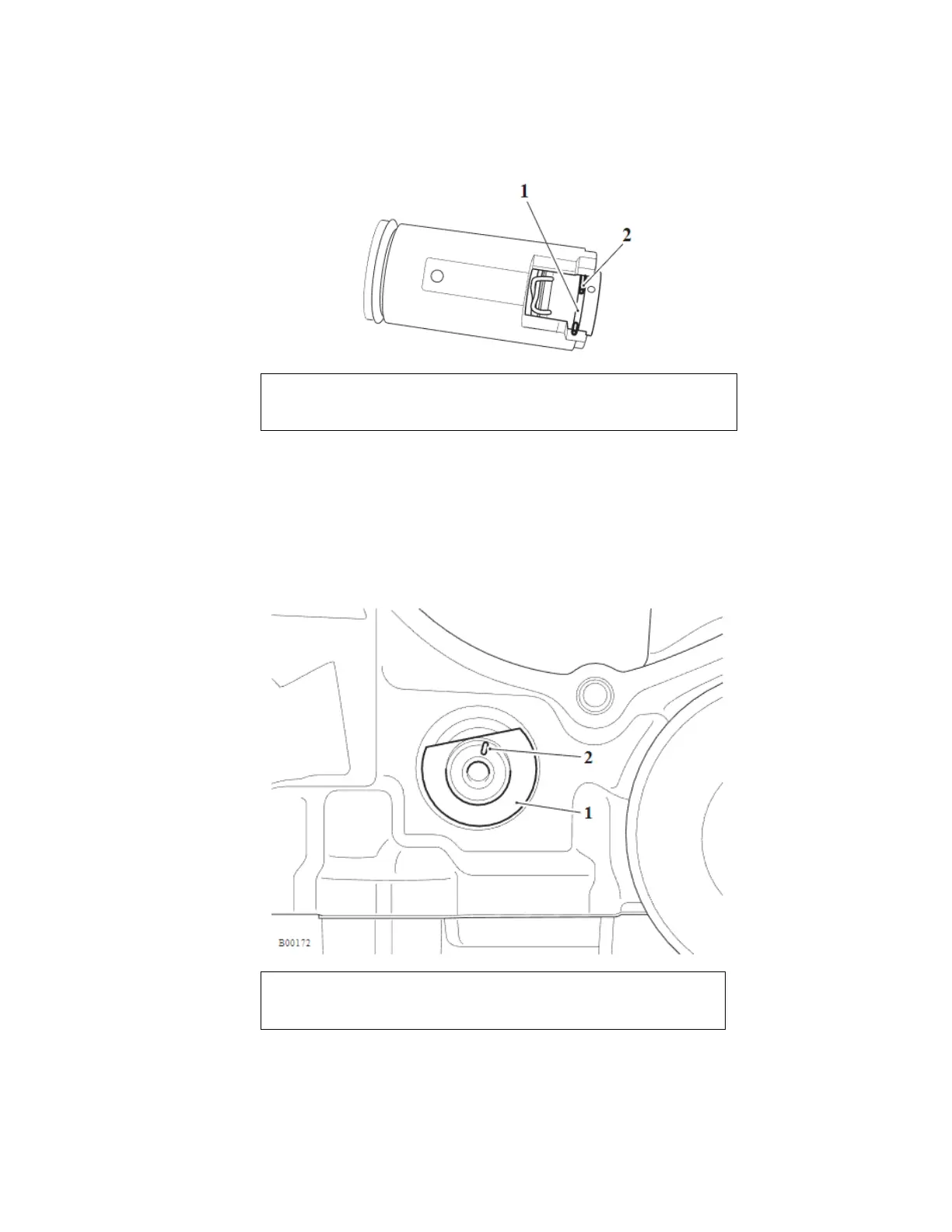

1. Snap ring groove
2. Snap ring
13. Fit two new O-rings to the camshaft drive chain tensioner body.
14. Fit the tensioner to the cylinder head as noted for removal. Using service tool
T3880649, tighten the tensioner to 16 Nm.
15. Remove the two wedges that are between the camshaft sprockets and the crankcase.
16. Remove service tool T3880501.
1. T3880501 - Crankshaft Locking Pin
2. Alignment mark
17. To release the plunger from the snap ring holding the hydraulic tensioner, rotate the
crankshaft anticlockwise until the plunger is released.
