283
20. Check that the tensioner plunger is correctly located in the middle of the camshaft
drive chain tensioner blade when viewed from above.
21. Rotate the engine through 4 full revolutions, and reset number 1 cylinder to TDC.
Make sure that the two gear teeth with an alignment marks are visible in the hole for
the crankshaft locking pin.

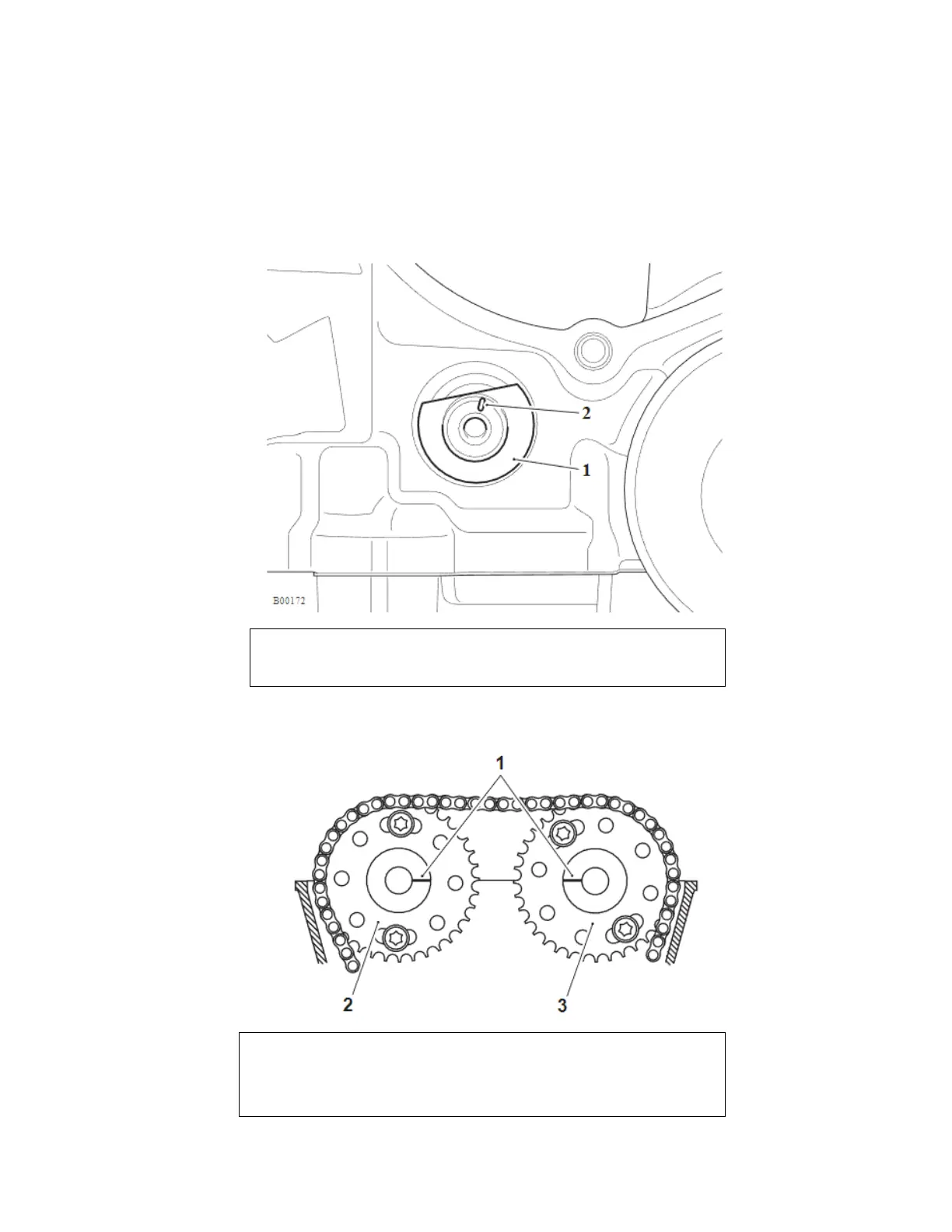

22. Fit service tool T3880501 through the hole in the crankcase.
1. T3880501 - Crankshaft Locking Pin
2. Alignment mark
23. Check the alignment marks on the front end of the camshaft journals are pointing
inwards.
1. Camshaft alignment marks
2. Exhaust camshaft
3. Inlet camshaft
