8. Visually check the pivot sleeve, return spring, brake lever pivot and push rod are
installed as noted during removal.
9. Fit the dust cover to the push rod on the clutch lever.

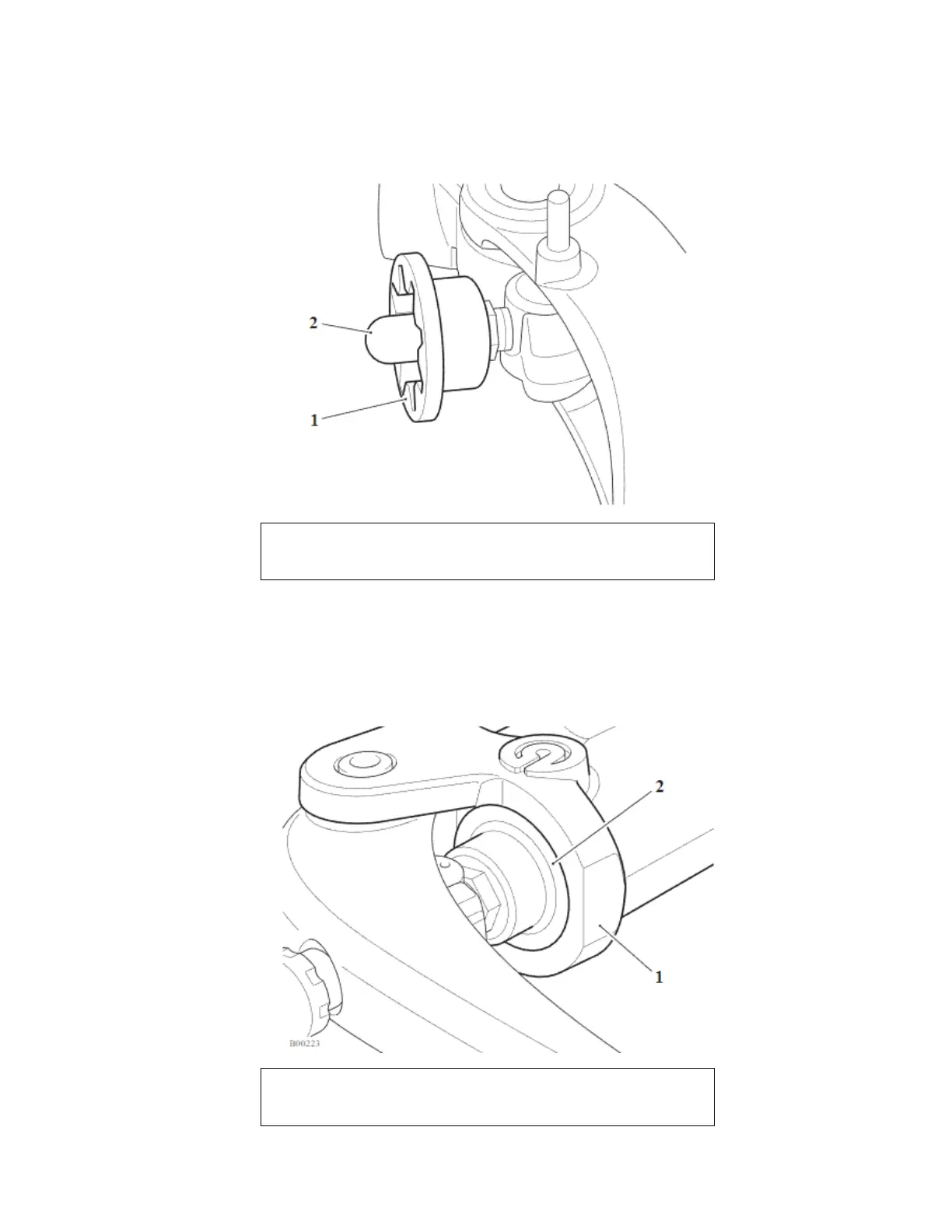

1. Dust cover
2. Push rod
10. Line up the holes of the brake lever and master cylinder, and insert the pivot bolt.
Tighten the pivot bolt to 6 Nm.
11. Fit the pivot bolt lock nut and tighten to 6 Nm.
12. Fit the dust seal into its recess in the master cylinder.
1. Dust cover
2. Master cylinder
