Clutch - Installation
Make sure the motorcycle is stabilised and adequately supported.
A correctly supported motorcycle will help prevent it from falling.
An unstable motorcycle may fall, causing injury to the operator or damage to the
motorcycle.
To aid installation, the clutch centre and pressure plate assembly should be
temporarily fitted to the clutch outer drum while it is removed from the motorcycle.
This allows alignment of the friction plate outer tabs prior to installation to the
motorcycle.

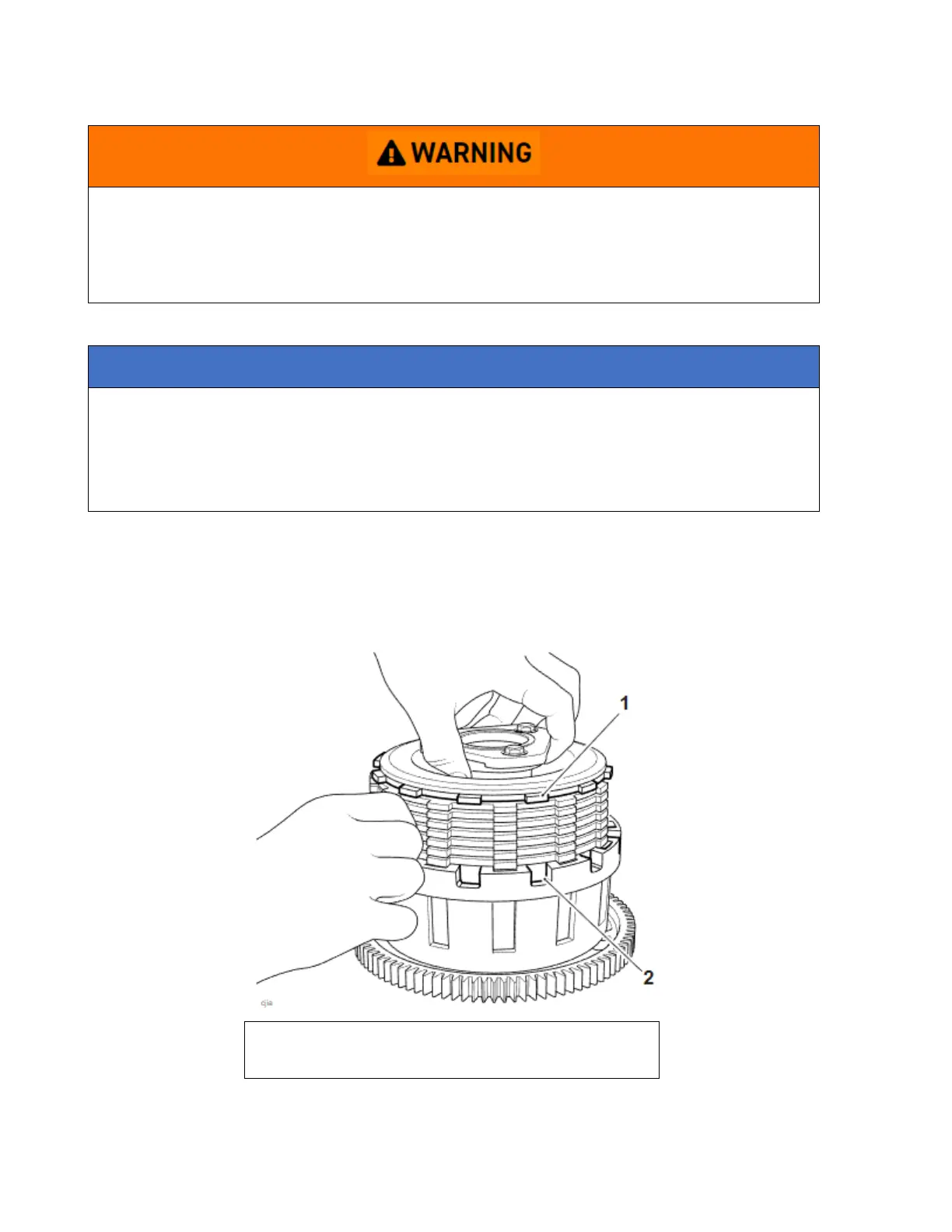

1. With the clutch outer drum assembly removed from the motorcycle, fit the clutch
centre and pressure plate assembly to the outer drum assembly. Align the friction
plate tabs noting that the outermost friction plate engages in its own (shallow) slot.
1. Outer most friction plate
2. Shallow slot
