5. Fit the washer and the front scavenge pump dowel to the drive shaft as noted for
removal.
6. Fit the front scavenge pump inner rotor to the drive shaft, make sure the recess in the
rotor fits over the dowel.
7. Fit the front scavenge pump outer rotor and fit the scavenge pump housing as noted
for removal.
8. Fit the rear scavenge rotor dowel to the drive shaft.

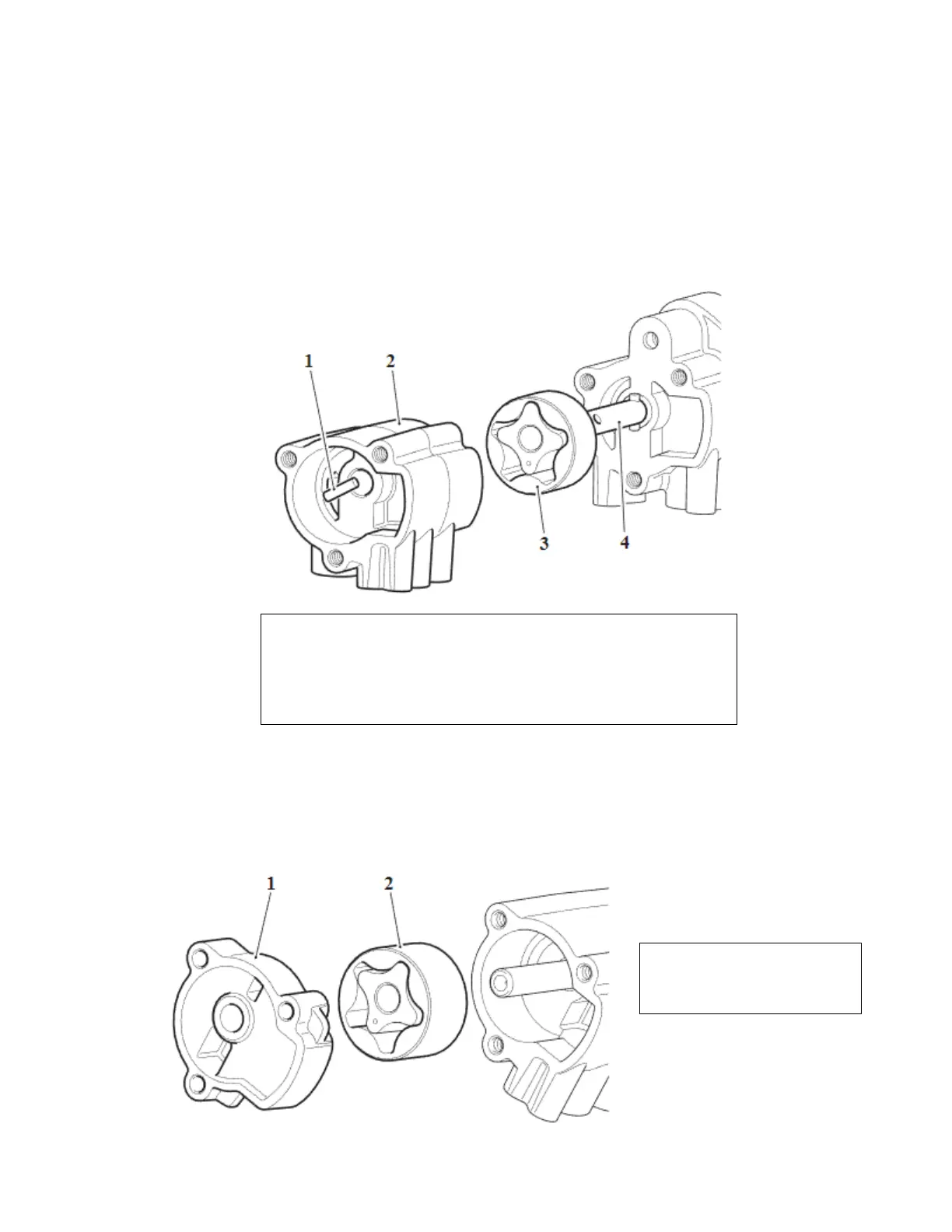

1. Rear scavenge pump dowel
2. Scavenge pump housing
3. Front rotor assembly
4. Oil pump drive shaft
9. Fit the rear scavenge pump inner rotor to the drive shaft, make sure the recess in the
rotor fits over the dowel.
10. Fit the rear scavenge pump outer rotor and fit the oil pump rear end plate as noted
for removal.
