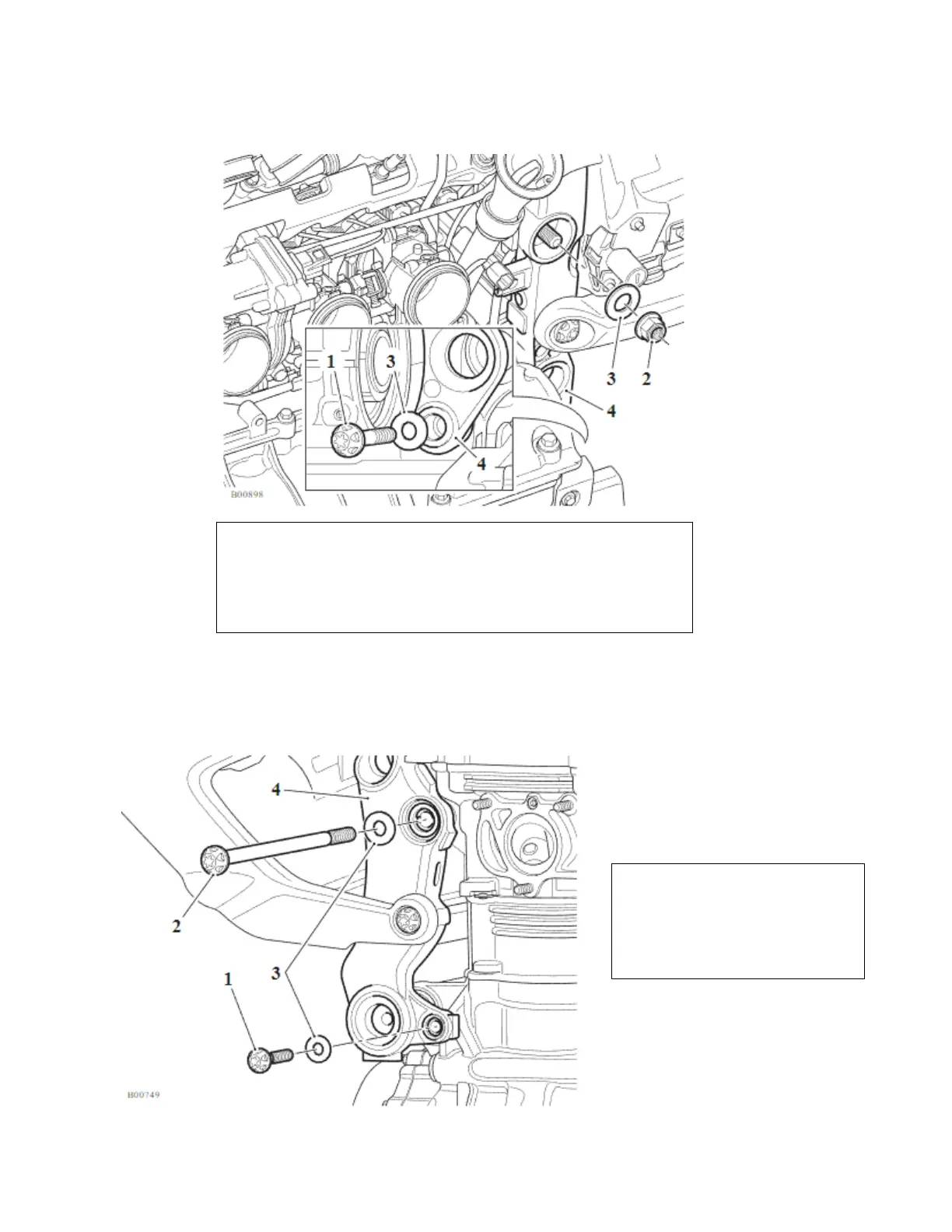

30. Remove the lock nut and washer securing the left hand outrigger to the rear of the
cylinder head.
1. Bolt
2. Lock nut
3. Washers
4. Left hand outrigger
31. Remove the bolt and washer securing the right hand outrigger to the upper
crankcase.
32. Remove the bolt and washer from the right hand outrigger to cylinder head.
1. Bolt (to lower crankcase)
2. Bolt (to cylinder head)
3. Washers
4. Right hand outrigger
