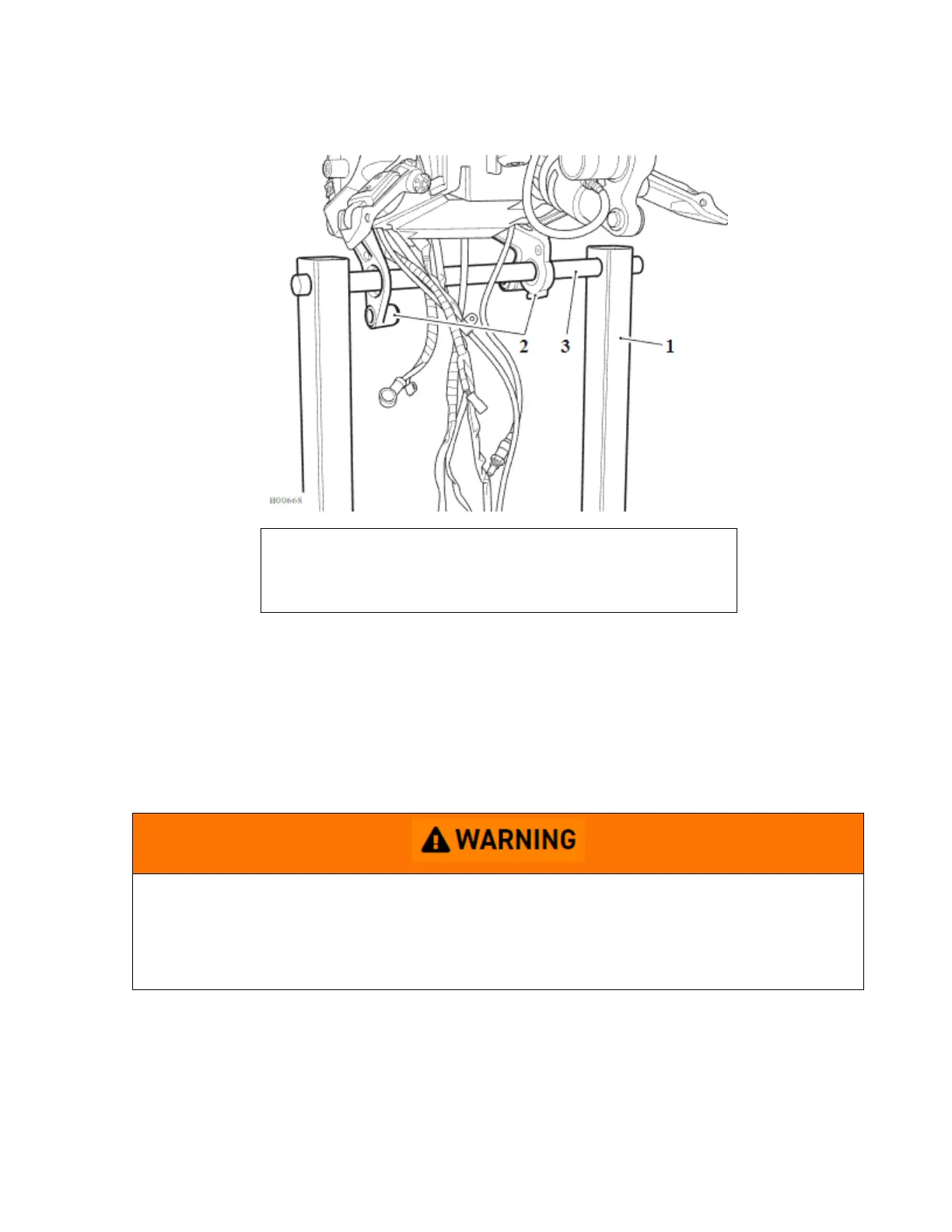

46. Fit the support bar of service tool T3880505 to the frame through the swinging arm
pivot mounting holes, as shown below.
1. T3880505 - Main frame support
2. Swinging arm mountings
3. Support bar
47. Remove the hoist supporting the rear of the motorcycle and remove the engine.
Engine - Installation
Make sure the motorcycle is stabilised and adequately supported.
A correctly supported motorcycle will help prevent it from falling.
An unstable motorcycle may fall, causing injury to the operator or damage to the
motorcycle.
1. With the engine on a suitable support, position the engine under the frame.
2. Raise the engine and connect the following harness connectors at the rear of the
engine. • Engine subharness
