556
11. Insert the crankcase front mounting bolt from the left hand side with a washer
between the bolt and the frame.
12. Fit the washer and new lock nut to the crankcase front mounting bolt. Do not fully
tighten at this stage.
13. Using service tool T3880506 fit the outrigger rear dowel.
14. Insert the outrigger rear mounting bolt from the left hand side with a washer
between the bolt and the frame.
15. Fit the washer and new lock nut to the outrigger rear mounting bolt. Do not fully
tighten at this stage.

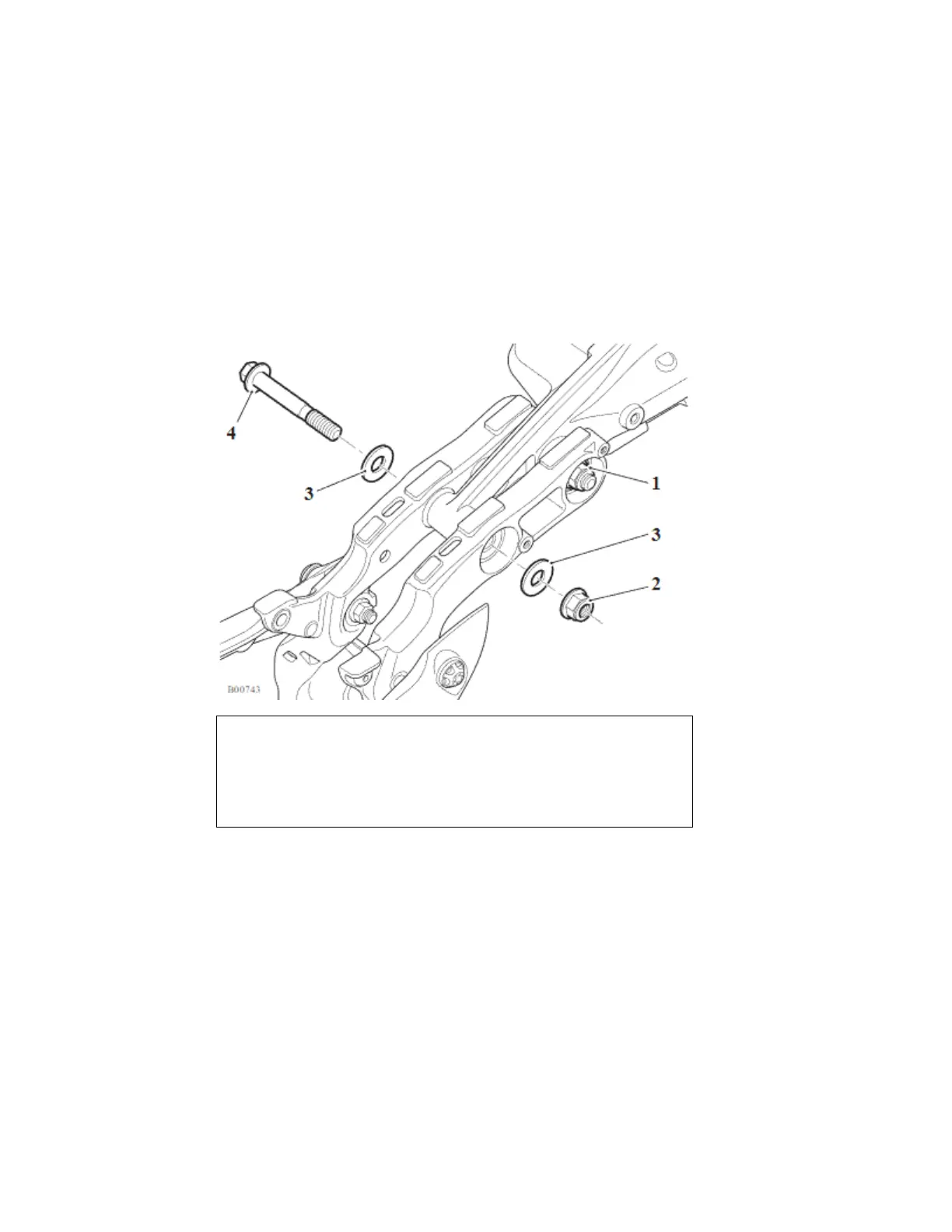

1. Front fixing
2. Lock nut
3. Washers
4. Fixing
16. Fit the crankcase rear mounting bolts.
17. Counter hold the lock nut and tighten the cylinder head front mounting bolt to 10
Nm.
18. Position the swinging arm to the frame.
