22. Counter hold the lock nut and tighten the outrigger rear mounting bolt to 80 Nm.
23. Counter hold the lock nut and tighten the outrigger front mounting bolt to 80 Nm.

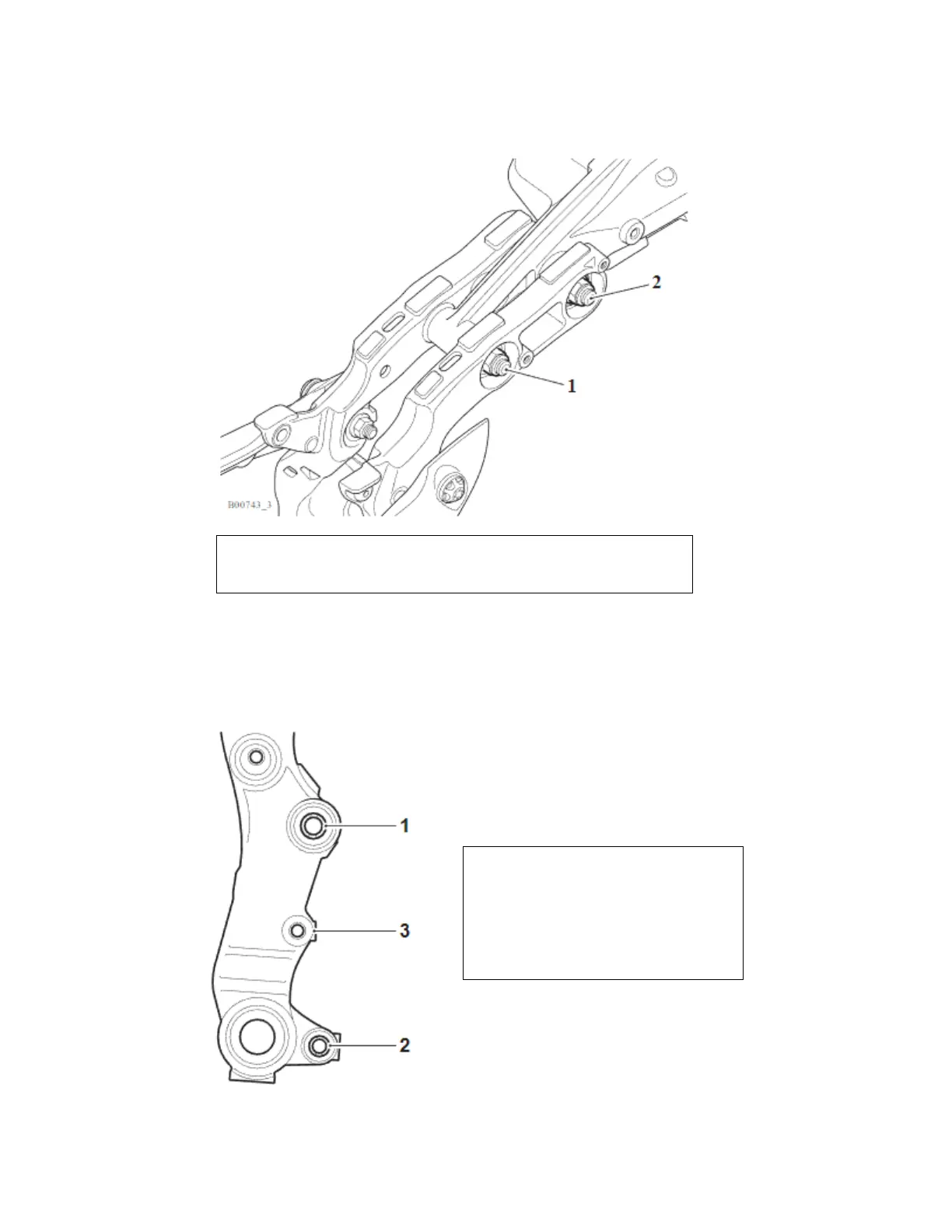

1. Rear lock nut
2. Front lock nut
24. Remove the crankcase rear mounting bolts.
25. Using service tool T3880103 tighten the crankcase right hand frame adjuster to 3
Nm.
Right Hand Frame Adjuster
1. Cylinder head frame adjuster
2. Crankcase frame adjuster
3. Outrigger
