26. Using service tool T3880181 tighten the crankcase left hand rear frame adjuster to 3
Nm.

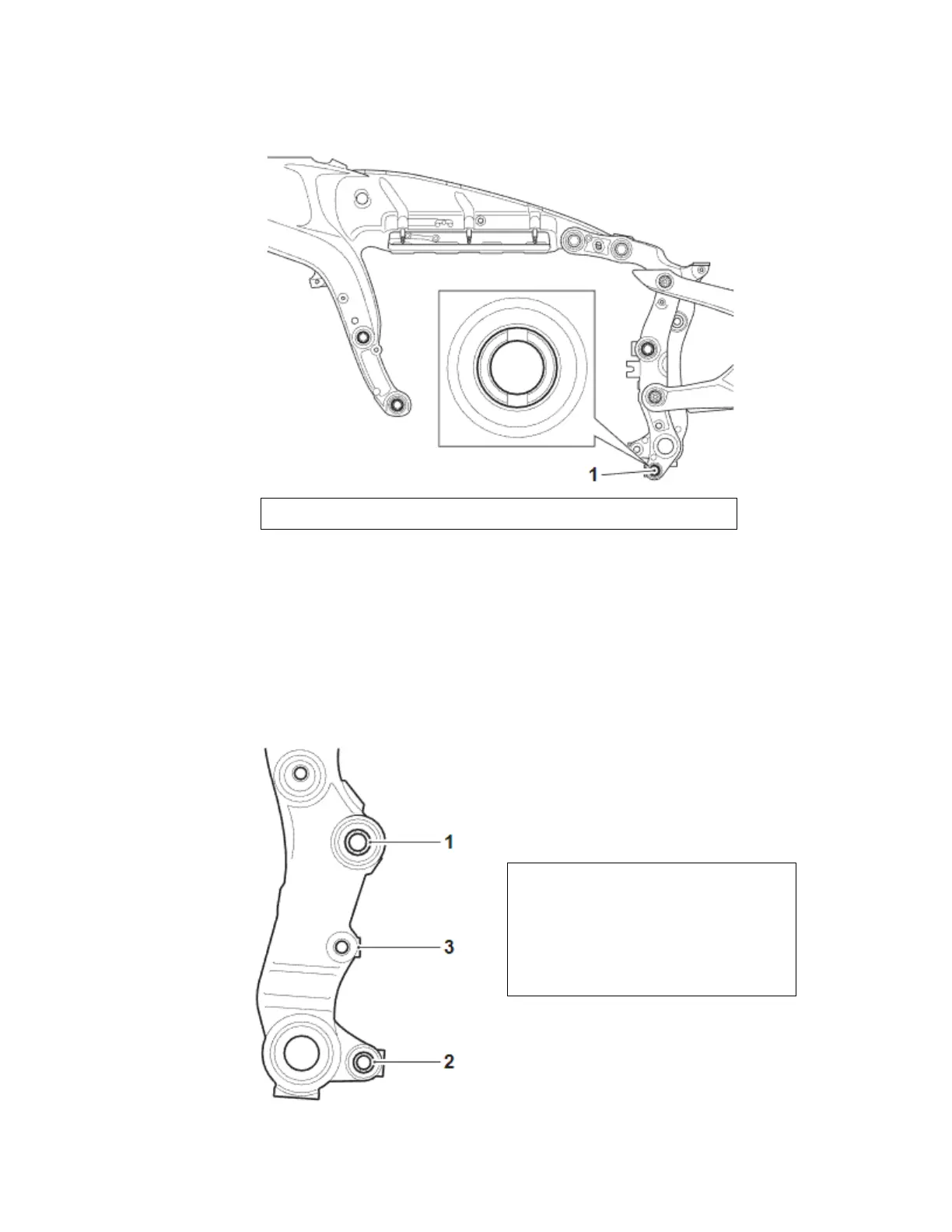

1. Frame adjuster
27. Fit the crankcase right hand rear mounting bolt with a washer between the bolt and
the frame. Do not fully tighten at this stage.
28. Fit the crankcase left hand rear mounting bolt with a washer between the bolt and
the frame. Do not fully tighten at this stage.
29. Using service tool T3880181 tighten the cylinder head right hand rear frame adjuster
to 3 Nm.
Right Hand Frame Adjuster
1. Cylinder head frame adjuster
2. Crankcase frame adjuster
3. Outrigger
