560
30. Insert the cylinder head rear mounting bolt from the right hand side with a washer
between the bolt and the outrigger.

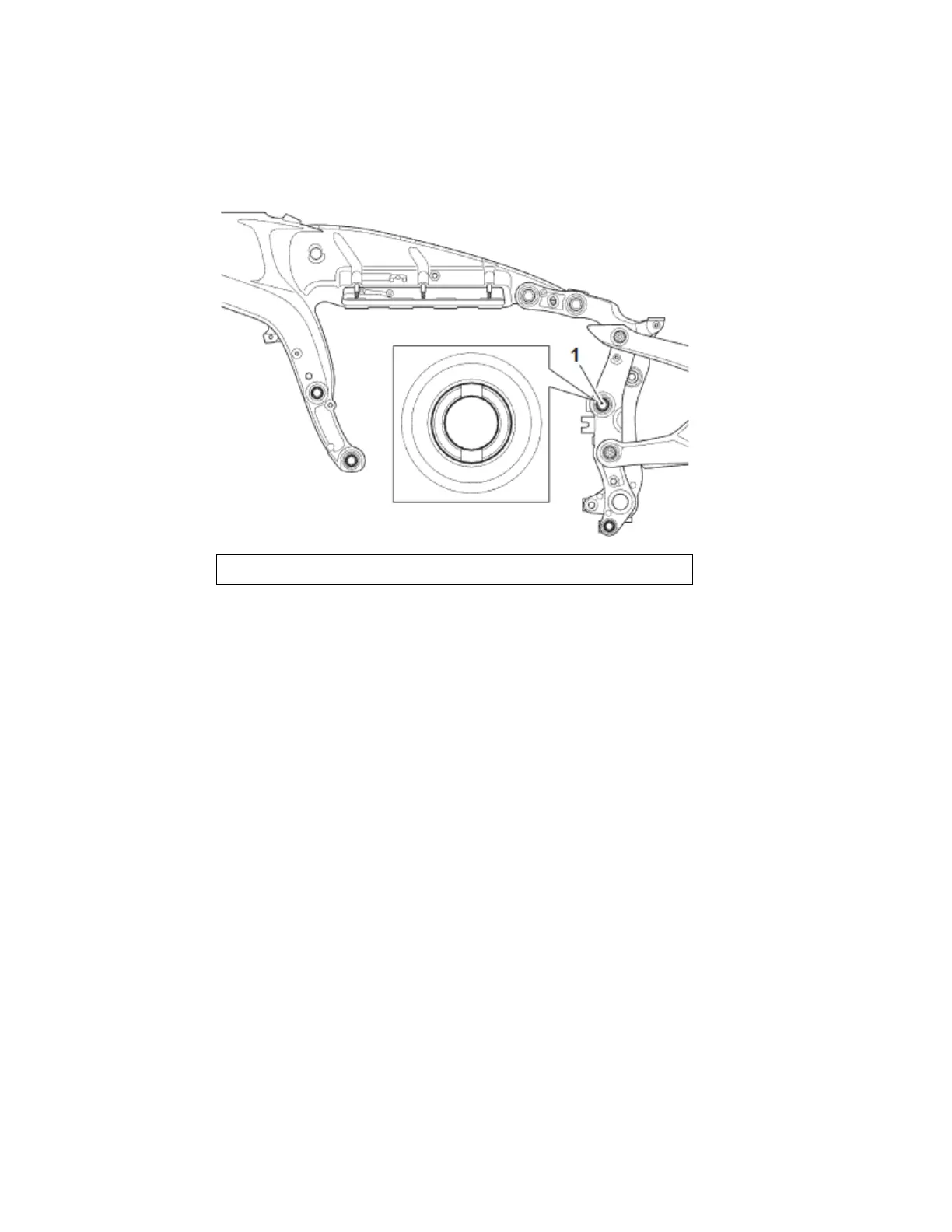

31. Using service tool T3880181 tighten the cylinder head left hand rear frame adjuster
to 3 Nm.
1. Frame adjuster
32. Fit the washer and new lock nut to the cylinder head rear mounting bolt. Do not fully
tighten at this stage.
33. Counter hold the lock nut and tighten the cylinder head front mounting bolt to 80
Nm.
34. Counter hold the lock nut and tighten the cylinder head rear mounting bolt to 80
Nm.
35. Counter hold the lock nut and tighten the crankcase front mounting bolt to 80 Nm.
36. Tighten the crankcase right hand rear mounting bolt to 48 Nm.
37. Tighten the crankcase left hand rear mounting bolt to 48 Nm.
