561

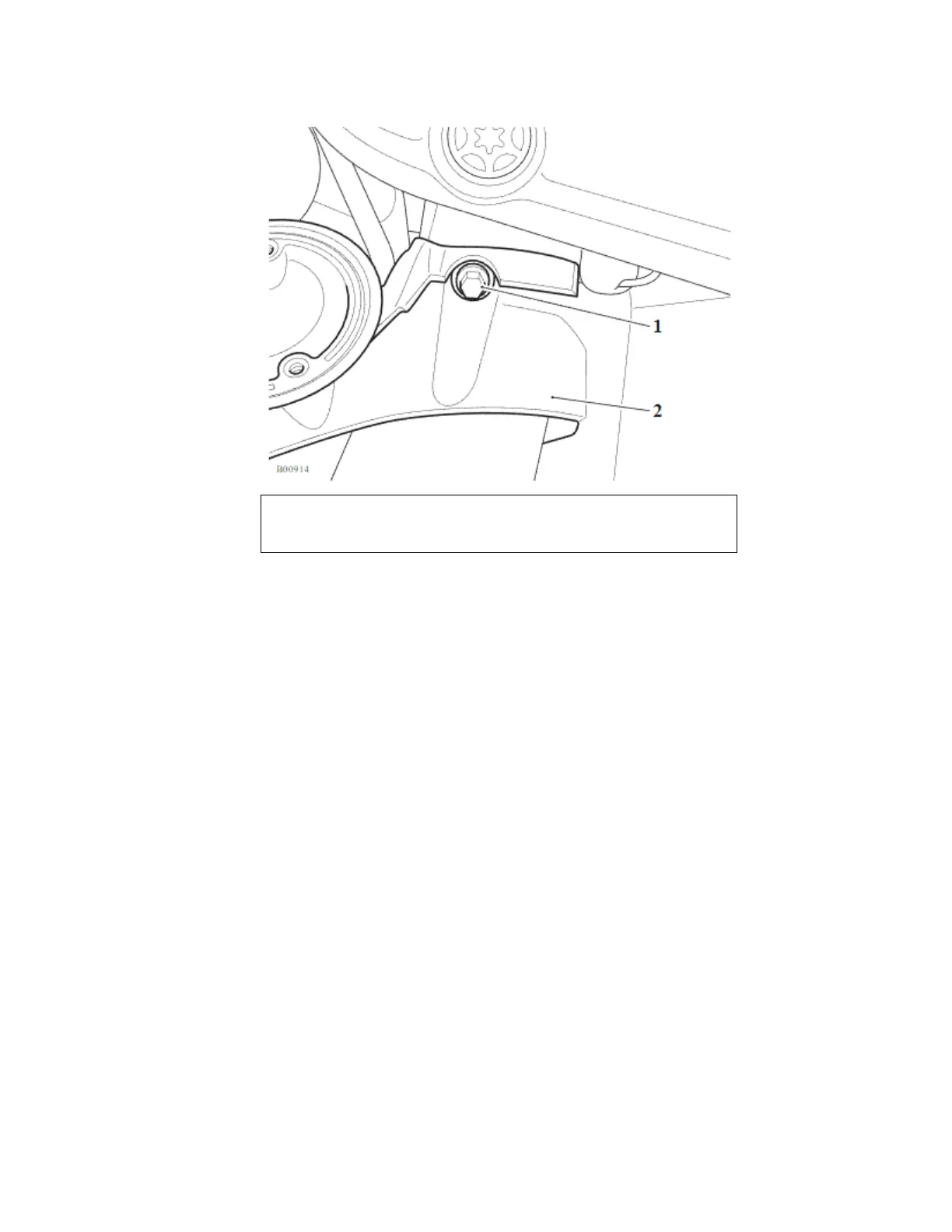

38. Secure the left hand side panel moulding to the frame, tighten the fixing to 3 Nm.
1. Fixing
2. Side panel moulding
39. Fit the engine oil dipstick.
40. Connect the cooling fan speed controller to the main harness.
41. Connect the coolant temperature sensor to the main harness.
42. Position the rear brake line to the motorcycle.
43. Position the purge valve and bracket assembly to the cylinder head.
44. ttach the brake line and its grommet to the bracket.
45. Attach the hose to the purge valve.
