763
Fuel Delivery System
Fuel is delivered to the injectors by a fuel pump. The fuel pump is a part of the pump
assembly located on the underside of the fuel tank.
The fuel pump assembly consists of the following components:
• Fuel pump baffle and filter assembly
• Fuel pump
• Fuel filter
• Fuel pump plateا
• Fuel pressure relief valve (fitted within the fuel pump plate)
Fuel is pumped from the fuel tank to the injectors (two injectors per cylinder) in the
direction of the arrows shown in the diagram below.

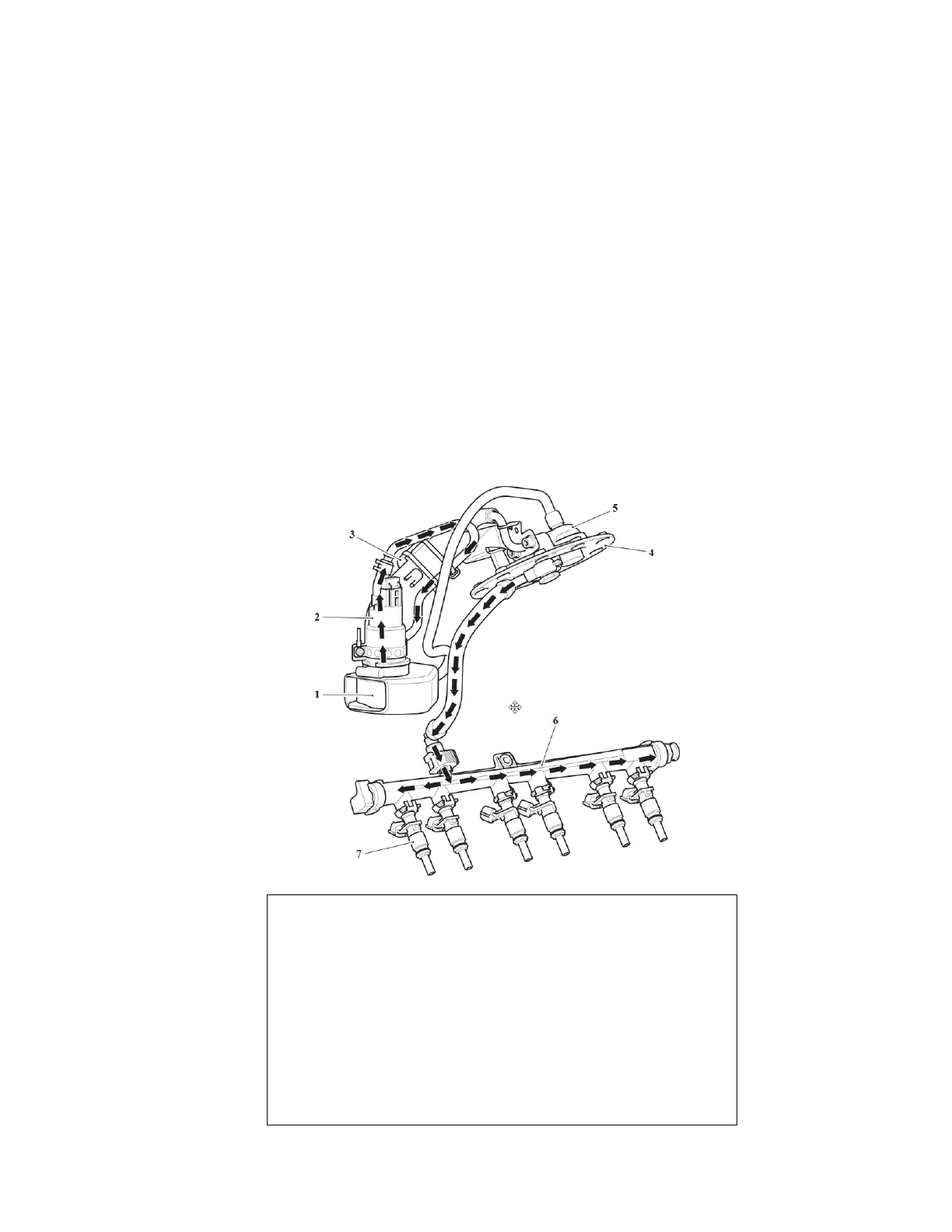

Fuel Flow
1. Baffle and filter assembly
2. Fuel pump
3. Fuel filter
4. Fuel pump plate
5. Fuel pressure relief valve location
6. Fuel rail
7. Injectors
