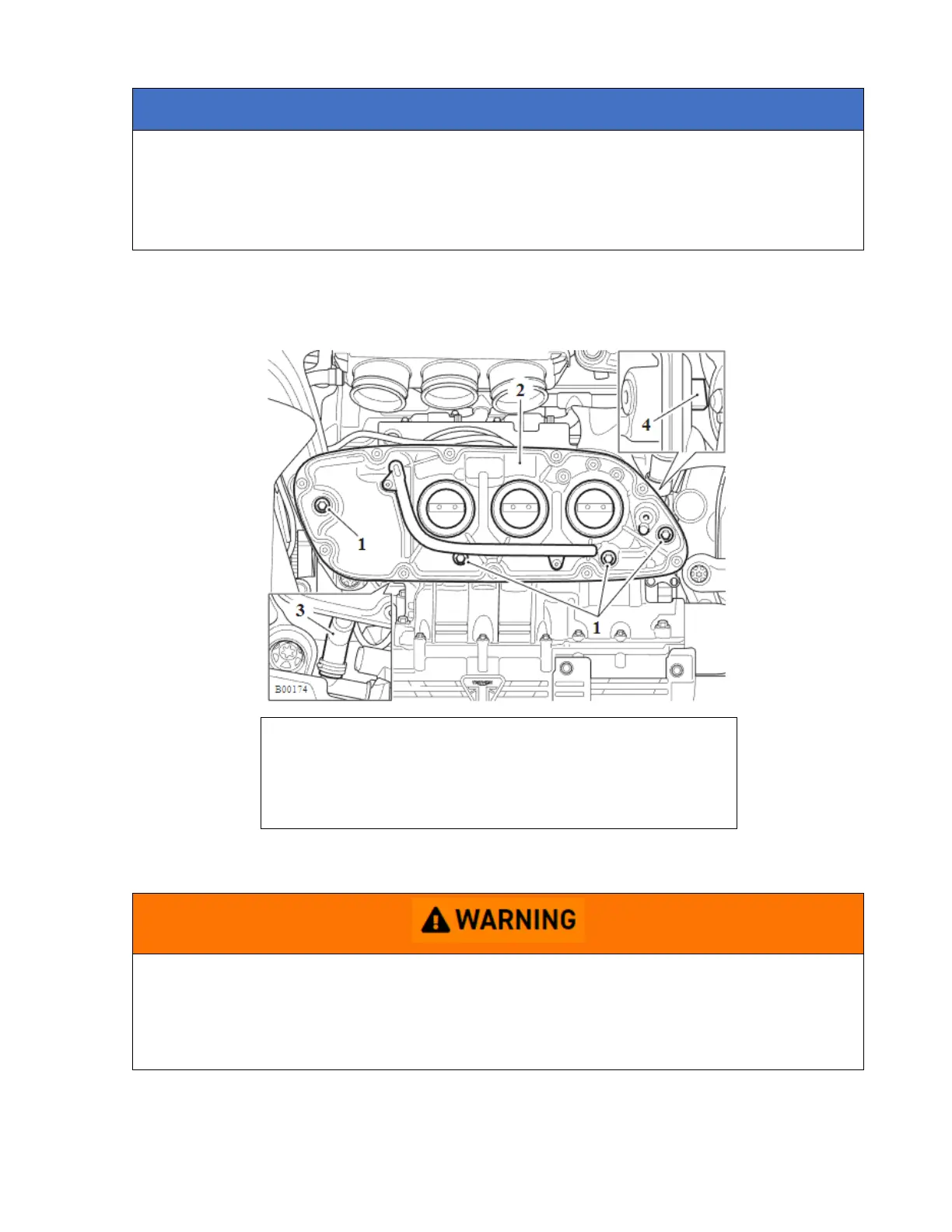

Note that the crankcase breather pipe is attached to rear of the plenum base near the
lower right hand corner.
The air temperature sensor is also attached to the rear of the plenum base on the right
hand side.
2. Release the four fixings and detach the plenum base from the throttle bodies.
3. Disconnect the crankcase breather pipe, the air temperature sensor electrical
connector and remove the plenum base.
1. Fixings
2. Plenum base
3. Crankcase breather pipe
4. Air temperature sensor
Plenum - Installation (All Markets Except US)
Make sure the motorcycle is stabilised and adequately supported.
A correctly supported motorcycle will help prevent it from falling.
An unstable motorcycle may fall, causing injury to the operator or damage to the
motorcycle.
