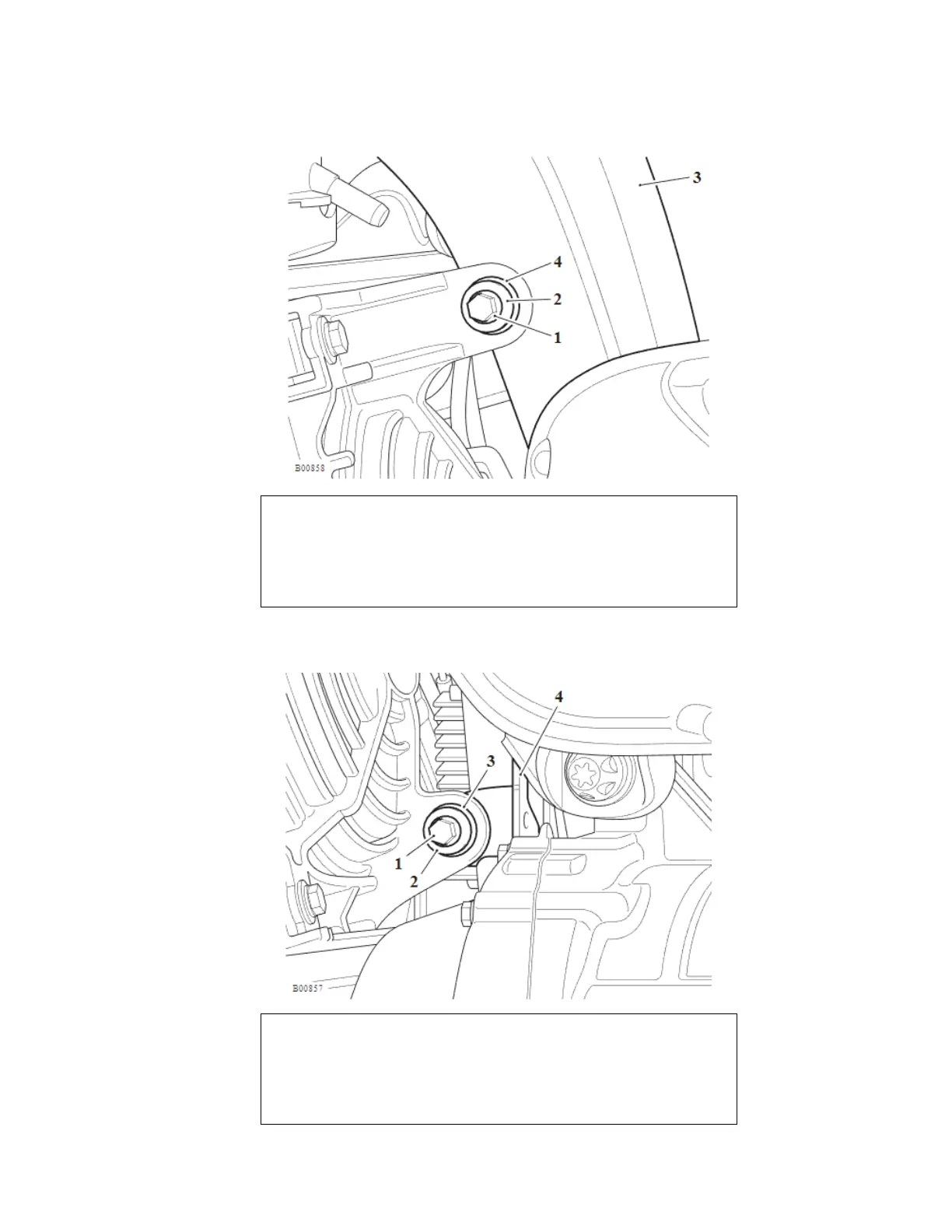

5. Position the radiator assembly to the frame. Fit the grommets, flanged sleeves,
washers and fixings as noted for removal. Do not fully tighten at this stage.
1. Fixing (left hand side shown)
2. Flanged sleeve
3. Frame
4. Grommet
6. Align the radiator assembly to its lower bracket. Fit the grommets, flanged sleeves,
washers and fixings as noted for removal. Do not fully tighten at this stage.
1. Fixing (left hand side shown)
2. Flanged sleeve
3. Grommet
4. Bracket
